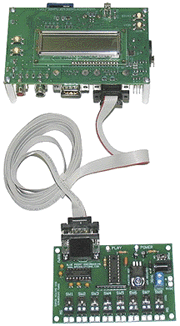

DMX Control Software - VSA

...

To Order any DMX Products, contact BPE at (303) 651-3794 (MST)

.... Board Size Approx: :
... 104mm x 79mm
.... DMX In-Out: 5-pin XLR connectors

... Transmit Mode
.... * PC (RS232) input
.... * 4 analogue inputs to 4 Ch DMX outputs
........ ( 0-255 DMX Values on outputs)
.... * Base address settable from 1 to 112

... Receive Mode
.... * PC (RS232) output stream
.... * 4 analogue outputs
....... ( 2 mAmp to 10K ohm Load Max)
.... * 4 servo outputs ( 1.0 to 2.0 msec PWM)
.... * Base address settable from 1 to 127

DMX - Document Instructions

This universal DMX board provides the essential interface between DMX, PC and Microcontroller applications and the industry standard DMX network protocol as used in many theater lighting and control systems.

This board is designed for connection to a DMX loop, specifically for controlling stage lights, special effects units and servo motors. It can receive or transmit DMX code and translate it from and to a variety of I/O channels. (Analog, Digital, Servo) It has been designed as a flexible interface device to the very fast DMX512 network to allow enthusiasts to develop their own DMX to computer controller lighting, special effects and a variety of DMX controlled devices with the minimum amount of electronics. The DMX board can be configured to act as a transmitter or receiver unit.

The DMX Board has available a Windows demonstration sample programmed plus some simple VBASIC code samples to assist with individuals development projects.
Board can be connecter to a USB to Serial adapter for USB computers

Unit comes with user manual and assembled board.
Tested and ready for use.
Power supply not included. ( 9 -12 Volt dc @ 1 Amp)

.. DMX - Converter Overview
.. DMX - Document Manual
.. Windows Demo Software
.. VBASIC Code Software

8-Channel Relay Board
Board Size Approx: :
5-1/2" L x 5" W x 1-3/8" H

Relay, single pole double throw
contacts rated at
10Amp @ 240V AC load

Relay- NO, NC, COMM
Contacts per relay
Wire Terminal Blocks

OPTIONAL Address Rotary Switch
OPTIONAL Address Digital Switch

8-Channel mechanical relay switched outputs which can be individually or group operated from any standard DMX controller system. (manual operated DMX console or computer / software based DMX control systems)
DMX Base address may be set between 1 and 505 . Works with full speed DMX data signal stream at 44 updates per second standard.

On board wire terminal connection blocks from relays for quick connection to external loads, devices. (Each Relay - NO , NC , COM wire contact connection)
LED Status indicators for Power, Relays and valid DMX data control signal

DMX In and Out : 5-pin XLR connectors, or twisted pair wire connection terminal block for DMX data signal.

Relays rated at 10 Amp @ 240 Vac load ( NO , NC , COM contacts)
0-60 Vdc load @ 5 Amp ( NO , NC , COM contacts)

Fully assembled board, Tested and ready for use.
Uses 1- 8 Consecutive DMX Channels

Board power supply not included. ( 12 Vdc at 0.5 Amp )

Optional: When using DMX Relay board with Inductive Loads, Pumps, AC Motors, or High Current Devices that can generate EMI signals, its recommended to use an R-C Snubber Noise and Arc Suppressor across wire leads. ( See Snubber Setup or contact BPE for more information)

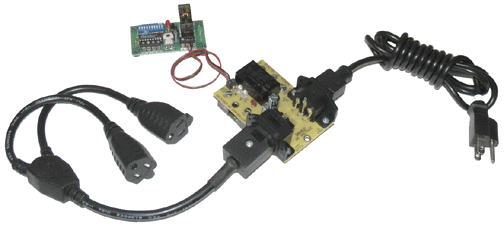

.. Example DMX Relay Setup
.. DMX - 8-Ch Relay Instructions / Guide
.. DMX - Setup Overview

Optional 8-Channel Relay in Box

Box Size Approx:
5-7/8" L x 5-1/4" W x 2" H





8-Ch Relays in Enclosure Box

DMX Relay Module Inside View
Enclosure Case Back View ..
Enclosure Case Front View

8-Channel mechanical relay switched outputs which can be individually or group operated from any standard DMX controller system. (manual operated DMX console or computer / software based DMX control systems)
DMX Base address may be set between 1 and 505 . Works with full speed DMX data signal stream at 44 updates per second standard.

On board wire terminal connection blocks from relays for quick connection to external loads, devices. (Each Relay - NO , NC , COM wire contact connection)
LED Status indicators for Power, Relays and valid DMX data control signal

DMX In and Out : 5-pin XLR connectors, or twisted pair wire connection terminal block for DMX data signal.

Relays rated at 10 Amp @ 240 Vac load (NO, NC, COM contacts)
0-60 Vdc load @ 5 Amp (NO, NC, COM contacts)

Fully assembled, Tested and ready for use.
Uses 1- 8 Consecutive DMX Channels

Board power supply not included. ( 12 Vdc at 0.5 Amp )

DMX - 8-Ch Relay Instructions / Guide

Optional: When using DMX Relay board with Inductive Loads, Pumps, AC Motors, or High Current Devices that can generate EMI signals, its recommended to use an R-C Snubber Noise and Arc Suppressor across wire leads.
( See Snubber Setup or contact BPE for more information)

Pro DMX 8-Ch Relay in box provides up to 8 digital outputs with the ease of decimal base address selection. The base address may be set to between 1 and 505 by simply pressing the + / - buttons until the required base address is displayed on the LED panel. The incoming DMX value on the base address channel may also be displayed by pressing the Read DMX button and the DMX signal failure setting (DMX Default) may be selected to be either relays all OFF or held at their last state.

Wire terminal connection blocks from relays for quick connection to external loads, devices. (Each Relay - NO , NC , COM wire contact connection)
LED Status indicators for Power, Relays and valid DMX data control signal

DMX In and Out : 5-pin XLR connectors,

Relays rated at 10 Amp @ 240 Vac load (NO, NC, COM contacts)
0-60 Vdc load @ 5 Amp (NO, NC, COM contacts)

Fully assembled Tested and ready for use.
Uses 1- 8 Consecutive DMX Channels

Power supply not included. ( 12 Vdc at 0.5 Amp )

Relay, single pole double throw
contacts rated at
10 Amp @ 240Vac load
5 Amp @ 0-60 Vdc load

DMX - 8-Ch Relay Instructions / Guide

Optional: When using DMX Relay board with Inductive Loads, Pumps, AC Motors, or High Current Devices that can generate EMI signals, its recommended to use an R-C Snubber Noise and Arc Suppressor across wire leads.
( See Snubber Setup or contact BPE for more information)

Board Size Approx:
5-1/2" L x 5" W x 1-3/8" H

Solid State Relays Available
Crydom - CMX60D5
( 0-60 Vdc @ 5 Amp)

Crydom - CX240D5
(0-240 Vac @ 5 Amp)

DMX - Relay Instructions
DMX - Overview

DMX 8-Channel control board with Solid State Switch Relays installed. Relays can be either AC or DC voltage Solid State Relay type.

Option A- DC Solid State Relays
0-60 Vdc @ 5 Amp

Option B- AC Solid State Relays
0-240 Vac @ 5 Amp

Controller board is powered by 12 Vdc at 0.5 Amp supply. Board operates from any standard DMX manual console or computer / software based DMX control systems.DMX Base address may be set between 1 and 505 . Board can work with full speed DMX data signal stream at 44 updates per second standard.
Fully assembled board with Solid State Relay options selected, Tested and ready for use.

On board wire terminal connection blocks from SS relays for quick connection to external loads, devices. (Each SS Relay - NO , COM contact wire connection)
LED Status indicators for Power, Relays and valid DMX data control signal. DMX In and Out : 5-pin XLR connectors, or twisted pair wire connection terminal block for DMX data signal.
Uses 1- 8 Consecutive DMX Channels

Power supply not included.
( 12 Vdc @ 0.5 Amp )

Board Size Approx:
5-1/2" L x 5" W x 1-3/8" H

. DMX - Relay Instructions

DMX - Relay Board will hold 8 Mechanical or 8 DC or AC Solid State Relays installed by user.

DMX Board is powered by12Vdc supply.
Base address may be set between 1 and 505.
Board works with full speed DMX signal stream at (44 updates /sec)
Board Size: 125mm x 130 mm ( 5"x5.4" )
On board Wire Terminal Blocks for Relay outputs.
DMX In-Out: 5-pin XLR connectors
Uses 1- 8 Consecutive DMX Channels
On-board ULN2803A Driver provides 200 mA per channel.
0-10 Vdc out per channel.s

Crydom Solid State Relays Not Included .
Standard Mechanical Relay Not Included .

Power supply not included.
( 12 Vdc @ 1.0 Amp )
Solid State Relays, Mechanical Relays not included

Recommended Solid State Relays
Crydom - CMX60D5 ( 0-60 Vdc at 5 Amp)
Crydom - CMX60D10 ( 0-60 Vdc at 10 Amp)
Crydom - CX240D5 . ( 0-240 Vac at 5 Amp)

Recommended Standard Mechanical Relays
OMI-SH-112D (30 Vdc @10 Amp)

4 Channel Relay outputs which may be individually controlled
from a standard DMX system.
Base address may be set between 1 and 505.
Works with full speed DMX signal stream (44 updates / sec) Assembled board, Tested and ready for use.
On board wire terminals from relays (NO, NC, Com contacts)
LED Status indicators for Relays and valid DMX Signal
DMX In-Out: 5-pin XLR connectors
Uses 1- 4 Consecutive DMX Channels

Relays rated at 10 Amp load @ 240 Vac (NO, NC, COM contacts)
0-60 Vdc load @ 5 Amp (NO, NC, COM contacts)

Note: Board can be stacked onto DMX 8-Ch Relay Board

Power supply not included. ( 12 Vdc @ 1.0 Amp )

DMX 4-Ch Relay Board Instructions
DMX - General Setup Overview

Optional: When using DMX Relay board with Inductive Loads, Pumps, AC Motors, or High Current Devices that can generate EMI signals, its recommended to use an R-C Snubber Noise and Arc Suppressor across wire leads.
( See Snubber Setup or contact BPE for more information)

... ( DMX - Duo Function 2-Ch Relay
... . (A) 2-Channel Relay Module
... ( B) 2-Channel Flip-Flop Relay Module

Mechanical Relay Version
Relay, single pole double throw contacts
rated at 10 Amp @ 240Vac load
5Amp @ 60 Vdc load

Board Size Approx:
5-3/8" L x 2-7/8" W x 1-1/4" H

Optional Solid State Relay Version
Solid-State Relays not included
SS Relay contacts rated at
5Amp @ 120V AC load
5Amp @ 60V DC load

DMX 2-Ch Relay Board
Instructions

2- Channel DMX Relay board that can function as a standard 2 Channel Relay board, or can be set to function as a 2 Channel Flip-Flop Relay board.

Mechanical Relay version can switching loads up to 10A at 240 Vac load, 0-60 Vdc load @ 5 Amp ( NO , NC , COM contacts). The DMX-switch operates on the standard DMX512 bus and requires 2 channel for operation. The address may be set between 1 and 512.
On board jumper switch selects Relay Operation Modes 1 or 2.

2- Channel Relay Mode: Relay board function as a standard 2 Channel Relay board when activated by DMX control

Flip Flop Relay Mode . Relays 1 and 2 alternate between ON and OFF when activated by DMX.control.

DMX Data Value	Relay 1 Status	Relay 2 Status
Less than 80	ON	OFF
Between 80 and 160	OFF	OFF
Greater than 160	OFF	ON

Connections
DMX: 5 Pin XLR Connections for input and feed-through.
12 Vdc @ 500mA via 2.1 mm Power Jack (Center Positive)
Wire Terminal Block connections on relay output.
( NO and COM wire connections )
SS Relay contacts rated at 5Amp @ 120Vac load

LED's - Red LED remains lit when valid DMX signal is being received. Rapid flashes when no signal is being received.
Relay ON / OFF Red LED

Uses 1-2 Consecutive DMX Channels
Power supply not included. (12 Volt dc @ 1.0 Amp)

Relay Module Size
135mm x 70mm x 30mm high

Optional: When using DMX Relay board with Inductive Loads, Pumps, AC Motors, or High Current Devices that can generate EMI signals, its recommended to use an R-C Snubber Noise and Arc Suppressor across wire leads. ( See Snubber Setup or contact BPE for more information)

DMX - 2-Ch Mechanical Relay PRO Module

A dual channel DMX switch for switching loads up to 10A at 240V AC.
The DMX-switch operates on the standard DMX512 network and requires 2 channels for operation.
The address may be set between 1 and 511. Standard board fitted with two 10A at 240 Vac load, 0-60 Vdc load @ 5 Amp mechanical relays.
Relay board can also be configured as a Flip-Flop Relay board where both on-board relays are interconnected to a single channel, with relays switch ON and OFF opposite each other when activated ON.

Connections
DMX: 3-pin screw terminal connection for input / output, 120R termination resistor Loads: Twin 3-way terminal blocks Power Supply:12Vdc via 2.1mm socket (centre positive) or 2 way terminal block.

Settings
Base address Set the required base address using the DIP switches 1 through 9. Add-up the values where the switch is set to the on position. The base address is read continuously. J1 jumper sets standard 2 switch relay or Flip-Flop Relay Mode.

Power supply not included. ( 12 Volt dc @ 1 Amp)

DMX 2-Ch Relay Board
Instructions

DMX - 2-Ch Mechanical Relay PRO Module
with Digital Addess

A dual channel DMX switch with digital address display for switching loads up to 10A at 240V AC.
The Dual DMX-switch operates on a standard DMX512 network and requires 2 channels for operation. The address may be set between 1 and 511, with programmable DMX signal failure setting.
Standard board fitted with two 10A at 240 Vac load, 0-60 Vdc load @ 5 Amp mechanical relays.

Connections
DMX: 3-pin screw terminal connection for input/output, 120R termination resistor Loads: Twin 3-way terminal blocks Power Supply:12V via 2.1mm socket (centre positive) or 2 way terminal block.

Power supply connected
the display will show Base address setting ( When connected to valid DMX signal) Set the required base address using the display +/- buttons Relay status Indicator LED's show the state of each relay DMX value <87% 224 Off / > 87% 223 On

Power supply not included. ( 12 Volt dc @ 1 Amp)

Mechanical Relay
Board Size Approx:
3-1/4" L x 2" W x 1" H

Relay, Single Pole Double Throw
contacts rated at
10 Amp @ 240 Vac load
5 Amp @ 60 Vdc load



Solid State Relay
Board Size Approx:
3-1/4" L x 2" W x 2-1/8" H
SS Relay, Com and NO Contacts
rated at 5Amp @ 60 Vdc load

. DMX - 1-Ch Relay Instructions



OPTIONAL Address Rotary Switch


Example Setup - 1Ch DMX Relay Board

A small single channel DMX relay for switching loads up to 10A at 240V AC. The DMX-switch operates on the standard DMX512 bus and requires 1 channel for operation. The address may be set between 1 and 512.

1- Channel Mechanical Relay Board
Connections
4 -way wire terminal block connectors. (a) Ground DC power supply connection, (b) +12 DC power supply connection, (c-d) terminal, DMX signal input line connections.
Wire Terminal Block connections on relay output.
( Comm, NO, NC wire connections on board)
Relay, single pole double throw contacts rated at 10 Amp @ 240Vac load, 0-60 Vdc load @ 5 Amp ( NO , NC , COM contacts)
Wire terminal block for DMX signal connection.
LED's - remains lit when valid DMX signal is being received. Rapid flashes when no signal is being received. Relay ON / OFF Green LED.
3-Pin header DMX termination resistor On/Off
Uses 1- DMX Channel

Power supply not included. (12 Volt dc @ 300 mA)

1- Channel Solid State Relay Board
Connections
4 -way wire terminal block connectors. (a) Ground DC power supply connection, (b) +12 DC power supply connection, (c-d) terminal, DMX signal input line connections.
Wire Terminal Block connections on relay output.
( Comm, NO, wire connections on board )
Solid State Relay rated at 5Amp @ 60 Vdc load
Wire terminal block for DMX signal connection.
LED's - remains lit when valid DMX signal is being received. Rapid flashes when no signal is being received. Relay ON / OFF Green LED.
3-Pin header DMX termination resistor On/Off

Power supply not included. (12 Volt dc @ 300 mA)

OPTIONAL
Address Rotary Switch available for this board

DMX - 1-Ch Relay Instructions
DMX - Setup Overview

Optional: When using DMX Relay board with Inductive Loads, Pumps, AC Motors, or High Current Devices that can generate EMI signals, its recommended to use an R-C Snubber Noise and Arc Suppressor across wire leads.
( See Snubber Setup or contact BPE for more information)

Board Size Approx:
5-1/2" L x 3" W x 1-3/8 "H
Board Output is 10 VDC at 20 mAmp per channel

Recommended Solid State Relays - Crydom


Optional
Crydom Relay Adapter Boards
Board A and Board B

Click on images for example setup


DMX Voltage Driver Instructions

Wiring Crydom SS Relays
to Driver Board

DMX 4 or 8 Channel 10-Vdc Output Driver for controlling remote Crydom Relay modules AC or DC type, or drive connected devices / loads that require a 10 Vdc control input. Board outputs 10 volts per channel and each channel can be individually controlled On and Off from a standard DMX system,

Base address may be set between 1 and 505.
Each Channel 1-8 can be individually controlled.
Works with full speed DMX signal stream (44 updates / sec) Assembled board, Tested and ready for use.

On board wire terminals for quick connection to remote Solid State Crydom Relays or device load.
LED Status for Relays and valid DMX Signal and Power.

On-board ULN2803A Driver provides 20 mA per channel.
10 VDC out per channel

DMX In-Out: 5-pin XLR connectors
Channel voltage output is 10 VDC each channel.
Board requires a Power Supply of 12 Vdc @ 1.0 Amp for operation

Board has a Common Positive (+) 10 Vdc supply for each channel with a switched On / Off Negative (-) output for each channel 1-8 load.
Note : Some SS relays require a switching + and constant - power source and may not be campatable with this DMX Driver board.


DMX Cables, DMX Interface, Power Supply, Crydom Relays and Relay adapter Boards not included.
Uses 1- 8 Consecutive DMX Channels ( 8- Channel Board)
Uses 1- 4 Consecutive DMX Channels ( 4- Channel Board)

Recommended Solid State Relays - Crydom
Crydom - CMX60D5 ( 0-60 Vdc @ 5 Amp)
Crydom - CMX60D10 ( 0-60 V dc @ 10 Amp)
Crydom - CX240D5 . (0-240 Vac @ 5 Amp)

WARNING:
Some optional adapter board connect directly to live AC Voltage. Use Caution when working with any AC voltage.

DMX - 4/8 Voltage Driver Instructions
Wiring Crydom SS Relays to Driver Board

Board Size Approx:
5-1/2" L x 5" W x 1-3/8" H

DMX - LED-9 Driver
Instructions

OPTIONAL Address Rotary Switch
OPTIONAL Address Digital Switch

The DMX- 9 Channel LED driver board allows up to 9 LED Arrays or 3 RGB Strips to be driven and controlled directly from a DMX512 network.

The DMX board uses power MOSFET in open collector mode for the PWM outputs.

The DMX- 9 Channel LED driver board provides 9 output channels of PWM running at 2 kHz. The base address may be set anywhere between 1 and 503.

The input voltage is anywhere between 9 to 15 Vdc and the LEDs are powered directly from this voltage supply at currents up to 1 amp per channel.
See DMX-LED-9 Driver Document for more information
about optional power / current configurations.
( See drawing figure1 and 2 )

MOSFET output drivers.
Board uses Common ANODE Configuration for RGB LED's
Uses 1- 9 Consecutive DMX Channels
DMX In-Out: 5-pin XLR connectors

( Requires DC supply, LED's, Resistors, DMX, Audio Cables not included )

Board Size Approx:
3-1/2" L x 3-1/4" W x 1-1/8" H

DMX - Serial Instructions
DMX- 512 Demo Software

The 512 channel serial to DMX module is a full speed serial to DMX board. The module will generate up to 512 DMX channels and accepts serial commands and data via a standard 9600 baud RS232 serial connection - eg PC interface.
The module will also store up to 60 scenes ( at 128 channels per scene ) and scenes may be switched in by a simple RS-232serial command or for scenes 1 through 8 by manual operated switches or relay closure.

Connections
DMX Out : 5-pin XLR Female connector
Power In : 2.1mm connector, centre positive. Requires 9V Dc at 0.5A
Serial In D-9 connector-Manual
Scene select- D-15 connector, ground pin 1 through 8 for switching scenes.
Power supply, manual switches not included.

Power supply not included. ( 12 Volt dc @ 1 Amp)

Board Size Approx:
3-1/4" L x 3" W x 1/2" H

DMX - Serial Instructions
DMX- 512 Demo Software

512 Channel - Serial to DMX PRO

The DMX 512 Channel Serial transmitter is a full speed serial to DMX512 transmitter. The on-board processor generates the full specification DMX-512 data transmission with timing independent of any connected PC source. The DMX-512 transmitter may also be used as a stand alone device with either a switched scene or script running facility.

512, 256 or 128 channels per scene capability
On-board scene storage of 13 scenes at 512 channels / scene, 55 scenes at 128 channels / scene
New Run Script mode with script switching function
New internal Scene Merge, X-Fade and Scene fade / dimming functions
In Command Mode, control either by RS232 commands or manual switch selection
RS232 baud rates of 9.6 or 19.2kB
USB serial interface and optional TTL interface for embedded applications
PCB layout for 5-pin Female XLR or 2-pin terminal block DMX output

Sample PC control software available.
Bulk Data loading / editing utility program DMX Grid

Sample Driver Software: Sample
Windows control software: Windows Software

Board Size Approx: :
3-3/8" L x 3-1/2" W x 1-1/8" H

DMX - Servo / Digital Instructions






Optional Quick Add-On Board
4-Servos and 4-SS Relays



Board Size Approx: :
3-7/8" L x 2-1/4" W x 5/8" H

The DMX Servo / Digital module is designed to provide 8 consecutive channels of output from a standard DMX protocol input signal. The outputs may be configured to be 8- digital (on-off outputs), or drive 8 standard RC type servos , or a combination of any two of these, 4-Digital and 4-Servo. The base address of the module may be set from 1 to 249 using the on-board addressing switches. ON board DIP switch easily sets board function mode and DMX addressing.

Output 1-8 Digital On/Off channels
- or -
Output 1-8 R/C Servo Control channels
- or -
Output 4-Digital and 4-R/C Servo control channels

DMX Bus
Dual XLR connectors are provided for connecting the module into the DMX signal network. The twin XLR connectors are wired in parallel for easy signal pass through.
The digital outputs are each 5V TTL level with a 470 ohm series resistor to limit current draw from the processor. The maximum current rating from the processor chip pins is 20mA sink or source with a total of 60mA in digital mode.
DMX In-Out: 5-pin XLR connectors M/F.
On board termination jumper, if module is last on network.
Red DMX Status LED indicator for network connection.
Board requires a 9 VDC @ 1 amp supply for operation (Not included)

Board is fully assembled, tested and ready for use.
Power supply not included. ( 9 Volt dc @ 1 Amp)

Optional Add-on Board for quick setup to Servos and Solid State Relays from DMX Servo / Digital board. Board connects to outputs from DMX board. There are 4 Servo Channels with 5 VDC power connection for plug and play feature and 4 Solid State 2 Amp relays. Quick wire terminal blocks connections make for quick setup.

Board Size Approx:
5-1/8" L x 4" W x 1-1/4" H

DMX - Motor Instructions

The DMX - Motor (servo) controller allows large DC motors to be controlled over a standard DMX system. The board may be configured to drive the DC motor simply as a variable speed, reversible motor or with the addition of a position feedback potentiometer, to create a powerful servo motor controller for accurate positioning purposes.

The DMX Motor controller will drive DC motors rated at up to 24 Vdc at 5A continuous current.
(shipped as standard with a 10A fuse)

The module requires 2 - DMX consecutive channels which may be set using on-board address switches. The module incorporates a 'local' control option for setting up and the ability to include end travel limit switches. DMX signal and connection points for limit switches.

Base address may be set from 1 to 512
Requires 2 DMX channels" position / speed byte and power amplifier enabled byte.
DMX In-Out: 5-pin XLR connectors
Uses 2 Consecutive DMX Channels

Motor and motor power supply not included

When using DMX boards with Inductive Loads, Pumps, AC Motors, or High Current Devices that can generate EMI signals, its recommended to use an R-C Snubber Noise and Arc Suppressor across wire leads.( See Snubber Setup or contact BPE for more information)

DMX - 1 Channel R/C Servo Driver- Enhanced

A DMX single channel R/C type servo motor controller for standard hobby servos, drawing up to 500mA.

Requires one DMX channel and generates servo control pulses between 1msec and 2msec giving a standard servo arm range of 90 / 180 degrees rotation. (Servo permitting)

90 or 180 Degree switch configuration for servo travel
Standard R/C Servo Connection header pins (3- Ground Power, Signal)
Supports standard R/C Servos with up to 500mA power draw.
(large servos can be used, by separating power supply from control signal, see BPE technical references for details)

Uses 1-DMX Channel -Base address may be set between 1 and 511 from on-board DIP Switches.
(0-255 DMX Value Range for servo travel / position control)
Works with full speed DMX signal stream (44 updates /sec).
LED's indicate Power and valid DMX signal status.
Wire terminal screw block for DMX signal control connection (2-Data-) and (3-Data+) and board / servo power supply connection (+) and (-)

Requires 7.5 to 9 Vdc supply at 1 Amp.

R/C Servo and power supply not included

The DMX 8- Channel Servo Driver board is designed to provide 8 consecutive channels of standard or extended range RC Servo output pulses from a DMX control signal.

Requires eight DMX channel and generates servo control pulses between 1msec and 2msec.

Base address may be set between 1 and 504. Works with full speed DMX signal stream (44 updates /sec).
JP1 OFF: Standard 90 range - JP1 ON: Extended 180 range
LEDS indicate relay and valid DMX signal status.
Wire terminal block for DMX signal connection
Data + = 3
Data - = 2
Screen / G = 1
Uses 1- 8 Consecutive DMX Channels

Power Supplies:
2 x 2 way terminal blocks with power indicator LEDs
Board Electronics: 9 Vdc @ 500ma
Servo Motors: 6.5 to 7.2Vdc @ < 2.5 Amps

R/C Servo and power supply not included

This servo-analog converter board provides a two channel capability of converting standard R/C servo PWM pulses to 0-10 Vdc and/or 0-5 Vdc outputs suitable for driving standard lighting dimmer packs or any device that requires a 0-5 and/or 0-10 Vdc variable controlled analog signal input. Module easily connects to DMX Protocol Converter servo output channels to form 0 -10 controller for analog input devices. (Old analog dimmers, sound systems, lighting modules)
Use with DMX Servo Driver Board.

Specifications:
Servo input pin headers from R/C unit.
2 - Channel Analog 0-5 and/or 0-10 Vdc output is available from the 4 way terminal block for wire connection.
No external power supply is required, the module takes it's supply from the incoming servo drive connections.
Servo inputs: 1 to 2msec pulses.
1-msecs servo pulse gives 0 Vdc output.
2-msecs servo pulse gives 5 and/or10 Vdc output.
0-5 and/or 0-10 Vdc DC Analog outputs in 80mV increments.
125 steps between 0-5 and/or 0-10 Vdc available.
Maximum drive current -10mA.

Board Size Approx:
4-1/2" L x 2-7/8" W x 1-1/8" H


DMX - PWM / Stepper
Instructions

Example Stepper Motor
Stepper Motor Not Included

DMX - stepper driver board may be configured to provide either 4 channels of 8-bit PWM suitable for driving LED (eg RGB) displays or with the flick of the on-board DIP switch, to generate full wave signals to drive standard DC voltage powered Unipolar stepper motors with speed and direction control.

PWM update rate is 2kHz on all 4- channels at 8-bit resolution

Stepping speed adjustable between 0.5msecs and 128msecs per step.

DMX Base Address can be set between 1 and 509
DMX Stepper mode requires 2 consecutive DMX channels, Ch1= Stepper Motor Speed and Direction, Ch2- Stepper Motor Power On / Off

DMX Signal LED, Board Power LED Status indicators.

MOSFET output drivers. Controller can operate standard Unipolar Steppers (5-6 wire). Stepper Motor Voltage 12 Vdc , Max 4 Amp load
Other volt DC Unipolar Stepper motors can be used by connecting directly to seperate motor power supply.

Uses 2- 4 Consecutive DMX Channels
DMX In-Out: 5-pin XLR connectors

Unipolar Stepper motor and motor power supply not included.
Controller board power suppy not included

STEPPER MOTOR NOT INCLUDED

A dual channel DMX Stepper Motor Driver board for controlling 2- Unipolar stepper motors.

Requires 4-DMX channels for control
DMX Base address selectable between 1 and 508.
Each unipolar stepper motor may be controlled independantly with clockwise and
counterclockwise motion, speed control at stepping rates of between 0.5 and 128 msecs per step.

MOSFET output drivers. Controller can operate standard DC voltage Unipolar Stepper Motors (5-6 wire). Stepper Motor Voltage 12 Vdc , Max 8 Amp load. directly from board power connection. Other volt DC Unipolar Stepper motors can be used by connecting directly to seperate motor power supply.

The 8 motor coil outputs are rated at 1 Amp Maximum (8 amps total) at 12 VDC and are arranged as open collector outputs for Unipolar type motors only. The Motor coil positive terminals are connected individually to any of the "+" input terminals and the coil negative terminals to the first 8 "-" input terminals on the controller board

DMX In-Out: 5-pin XLR connectors
DMX twisted pair data connector terminal blocks
DMX Terminator Jumper
Wire terminal blocks for stepper motor wires
Uses 4 Consecutive DMX Channels

Board Requires 9-12 VDC power supply at 1 Amps. not included.
Other volt DC Unipolar Stepper motors require secondary power supply, not included.
Unipolar Stepper motors and power supplies not included.

STEPPER MOTORS NOT INCLUDED

PCB Size: 3-7/8" L x 3" W x 1-1/8" H
Board provides 4 Ch - Analog Output
Sourcing 0-10 Vdc at 20mA per Channel

12 Vdc @ 1 Amp power supply required


DMX - Voltage Converter
Instructions

OPTIONAL Rotary Address Switch

A four channel output board for DMX512 to analog Voltage ( 0-10 Vdc ) converter (Decoder) with base address selectable between 1 and 509 for use on standard DMX512 networks

Connections
DMX In-Out: 5pin XLR connectors / Wire Terminal network block
Power Supply: +12Vdc via either 2-way terminal block or 2.1mm connector (center+)
Analog Outputs: 4-Channels 0-10Vdc @ up to 20mA per channel via 2-way screw terminals (output use LM358 op amps)

Settings
Set the required base address using the DIP switches 1 through 9 (10 is used for mode Linear or Logarithmic). The base address is only read at power up. - Optional Rotary Address Switch Module also available, On board Termination Resistor Jumper.
Uses 4 Consecutive DMX Channels

DMX LED: Remains lit when valid DMX signal is being received. Rapid flashes when no signal is being received. Green Power LED
PCB Size: 3-7/8" L x 3" W x 1-1/8" H
Unit comes with user manual and assembled board. Tested and ready for use.
Power supply not included. ( 12 Volt dc @ 1 Amp)

DMX to Voltage (0-10V DC)
4 - Ch Converter Base Board

A basic DMX board with four channel outputs for DMX512 to analog Voltage ( 0-10 VDC ) converter (Decoder) with base address selectable between 1 and 509 for use on standard DMX512 networks

Connections
DMX In-Out: 5pin XLR connectors / Wire Terminal network block
Power Supply: +12Vdc via either 2-way terminal block or 2.1mm connector (center+)
Analog Outputs: 4-Channels 0-10 Vdc @ up to 20mA per channel via 2-way screw terminals (output use LM358 op amps)

Settings
Set the required base address using the DIP switches 1 through 9 (10 is used for mode Linear or Logarithmic). The base address is only read at power up. - Optional Rotary Address Switch Module also available, On board Termination Resistor Jumper.
Uses 4 Consecutive DMX Channels

DMX LED: Remains lit when valid DMX signal is being received. Rapid flashes when no signal is being received. Green Power LED
PCB Size: 97mm x 72mm
Unit comes with user manual and assembled board. Tested and ready for use.
Power supply not included. ( 12 Volt dc @ 1 Amp)

DMX to Voltage (0-10V DC)
4 - Ch Converter (Decoder)

DMX- Voltage Converter . A four channel DMX to Voltage (0-10V DC) converter with base address selectable between 1 and 509 for use on standard DMX512 networks. LED Display for Addressing, Simple buttons for setting base address

Connections
DMX: Power Supply Needed : 12 Vdc at 1 Amp
Voltage Outputs: 3 pin terminal block with 120 Ohm termination resistor. +12 Vdc via either 2-way terminal block or 2.1mm socket connector (center +)
0-10 Vdc @ up to 20mA per channel via 2-way screw terminals Outputs use LM358 op amps- for device power limitations

Base address is set using simple buttons, LED Display for Addressing

Power supply not included. ( 12 Volt dc @ 1 Amp)

PC Board Size:
1.50" X 2.75".



DMX - Encoder
Instructions

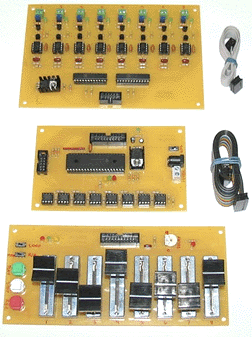

DMX -Encoder Setup Example


Optional
Switched Analog Board
8-Channels - 0 to 10VDC

Click on board for more info.

8 Channel DMX512 Encoder with DMX Merge The Encode board accepts analog 0 -10 VDC input alone and/or a DMX512 data stream from another source. The analog voltage is combined with the DMX512 input to create a single DMX512 output. The 0-10 analog voltage is converted to 255 discrete levels in DMX.

Specifications:
Analog input: 0 -10 Vdc @ 5mA. This board expects a conditioned signal. If the encoder board is to be used in a noisy environment, external signal conditioners should be used.
DMX 512 input: Accepts DMX512 digital stage lighting protocol up to 512 channels. Only DMX packets with a zero start code will be accepted . Non-zero start code packets will be ignored.
Address switch: Address selection is via a 9 position mini on board DIP switch. - Set the starting address to the first in a group of 8.
Board Power requirements: 8 to 15 volts DC @ 100 mA.
Board connections: Power and DMX 512 output connections to the board are made via screw terminal block
8 Channels: DMX512 Encoder with Merge function combine DMX and analog input into 1 output.
Analog Input: Requires stable 0-10 volts DC @ 5mA, Analog Input.
Input and out on screw connectors, no soldering.

Output is compliant with USITT's DMX512- 1990 protocol.
250 Kbaud : 4us/ bit
Start code: 0
Break Length: 150 us
Mark after Break: 50 us
Inter frame time: 50 us
Output channels: 8 + start address or up to 512 using DMX 512 input

NOTE : Analog Input is an analog voltage spanning 0 - 10 Vdc @5mA. This must be a smooth DC voltage with no noise or ripple. Any imperfections in the analog input voltages will be reflected in the DMX512 outputs.

Power supply ( 9 Volt dc @ 1 Amp), Analog source, DMX connectors and connection wires not included.

Back View

Side View


Board Size:
0.0" L x 0.0" W x 1" H
(including standoffs

DMX -Merge Board
Instructions

The DMX Merger is a 2 in 1 out software processed DMX 512 merger PCB with versatile uses. Merge or combine two DMX 512 signals or universes into one universe, by a selected mode type: HTP (Highest Takes Priority), Append, or Backup. Multiple Merge Boards can be combined to merge more than two universes or provide multiple functions. By configuring several Merge Boards in different mode types, each can perform a specific of task. Thus multiple Merge Boards could be configured to merge two or more universes into one universe, the combined output could be appended to another universe, and then the final output could operate in parallel with a backup DMX512 source with auto switch over. Features LED indicators for power and the two inputs.

DMX Merge Board - Selectable Modes:

MERGE HTP MODE The HTP mode will merge two universes into one universe using HTP (Highest Takes Priority) processing of the level of each channel. In this mode two lighting boards (or any two DMX 512 generating devices) can control the same devices. This mode is useful for controlling the same DMX 512 equipment and devices with two DMX 512 generating devices in one universe.

APPEND MODE The Append mode will append input B after input A, input A is the 1st part of the DMX512 packet and the B input is the 2nd part of the transmitted output. In this mode two lighting boards (or any two DMX512 generating devices) can be combined, each controlling different equipment but on one cable (or universe). This mode is useful for controlling different DMX512 equipment or devices with two DMX 512 generating devices in one universe.

BACKUP MODE The Backup mode will transmit input A continuously, ignoring input B as long as input A is a valid DMX512 signal. If input A's signal fails input B will be switched to automatically and transmitted.

Power Requirements: 9 Vdc at 0.5 Amp
PCB has a 120 ohm terminating resistor on board with a selectable jumper.
PCB can be enclosed in case with panel mounted XLR connectors, power supply jack and LED's.

Power Supply, XLR connectors, connecton wire, DMX source, devices or enclosure not included. Optional Kit available with XLR connectors, power connector, hookup wire and power supply.

The DMX video switch board will switch up to 4 composite video inputs to a single video output.

The incoming DMX data value determines which video input is routed to the output. Requires 1 channel of DMX data.

DMX In-Out: 5-pin XLR connectors
Uses 1 DMX Channel

The board requires a single DMX channel and is addressable in the range 1 to 512 .

DMX Values
Values 0 to 63, switch input Ch-1 to the output video Ch.
Values 64 to 127, input Ch-2 to the output video Ch.
Values 128 to 191, input Ch-3 to the output video Ch.
Values 192 to 255, input Ch-4 to the output video Ch.

Board Size Approx:
4-1/2" L x 2-7/8" W x 3/4" H

DMX - PWM / LED
Instructions

The DMX-4 Ch LED / PWM driver board allows LED arrays to be driven and controlled directly from a DMX-512 network.The board supports 4 output channels running at 2kHz.The base address may be set anywhere between 1 and 509.
Connections
DMX : Dual 3 pin terminal blocks.
Power: 4 way terminal block 0V/12Vdc in/out.
Board power requirements are 9-12Vdc at 0.2 Amp +load current as required up to 800ma.
Outputs:4 separate PWM outputs via screw terminals.
Uses 4 Consecutive DMX Channels

Outputs
The 4 output channels are rated at 0.2 Amps @12Vdc and are arranged as open collector devices. PWM (LED)
Board uses Common ANODE Configuration for RGB LED.

Indicators
Power LED, Correct power applied, DMX Status LED, No DMX signal,flashing red LED.

Power supply, LED's , DMX Controller, Connectors not included.

Board Size Approx:
3-5/8" L x 2-3/8" W x 1/2" H

. DMX - LED Driver Board Instructions

A single channel DMX to PWM driver board suitable for driving LED bars, strips, strings, single LED, etc.
The PWM (Fade) update rate is 2-kHz at 8-bit resolution.
The DMX Base address can be set between 1 and 511.
MOSFET output driver. 3 Amp Max load.
Uses 1 DMX Channel

Connections:
DMX input 3 way polarized plug in terminal block
G = Screen continuation, 2 = data ­, 3 = data +.

Power input:
7.5 -12Vdc @ 3 Amps max via 2 way polarized plug in terminal block.

Output- LED:
2 way polarized plug in terminal block for LED connection (+ / -)
(LED current limiting resistor required at LED)

Indicators:
Power LED, DMX Status LED, No DMX signal,flashing green LED.
Features:
Incoming DMX value can be inverted for custom DMX PWM output applications. Selectable on board 120 termination resistor.

Power supply, LED's, XLR Connector not included.

Board Size Approx:
4-1/8" L x 3-1/4" W x 1-3/8" H
( 9 Vdc @ 1.0 Amp power supply required)

DMX - Analog Encoder Instructions






Optional 4/6-Ch Joystick Interface
Control Module - (Custom Option Shown)





Optional 4-Ch 0-5VDC Adapter




Optional 4-Ch Multifunction Adapter
Analog, Switch, Remote Switch, RF Remote

This unique universal 4-Ch DMX Board provides the essential interface between DMX and Analog Input applications used for DMX control systems. (Potentiometers, Joysticks, Modified Switches)

This board is designed for connection to a DMX loop, specifically for controlling 4-Channels of analog driven device input to DMX 0-255 level outputs per channel. on a single standalone network.

Board can transmit DMX code and translate it from Analog Inputs. (Potentiometers, modified switches) to output control of optional network attached devices (Relay, Motors, Servos, etc.) and has been designed as a flexible interface device to the very fast DMX512 network to allow enthusiasts to develop their own Analog to DMX controlled devices with the minimum amount of electronic parts.

Optional Analog driven devices can be connected to the DMX 4CH analog to DMX board directly by a wire terminal block on-board. 5VDC, Ground Analog signals are directly provided on the board analog input ports to assist optional add-on components (Switches, Joystick, Potentiometers, etc). DMX values 0-255 are automatically converted based on Analog input readings from potentiometers, switches and sent out through the stand alone network on-board XLR connector to other DMX devices connected to the 4-Ch DMX Analog Board network..

4-Ch DMX Board Base address can be set from 1 to 112
Board will act a DMX Transmitter directly on DMX Network. (No other control console / software needed.)
NOTE: Requires DMX Merger Board if used on a multiple DMX network setup. This DMX to Analog board Transmitter directly on its own single stand-alone DMX Network.

NOTE: Power supply or optional analog adapter boards, remote trigger switch, Other DMX boards (Relays, Servo Driver board) not included.
( 9 Vdc @ 1.0 Amp power supply required)

Optional Joystick Controller. (Directly Control 2 or 4 R/C Servo motors over DMX network through optional add-on R/C driver board. (Not Included) and the connected DMX Analog Converter board and user Joystick Interface module (Not Included) * (Requires a DMX Servo Driver board, R/C Servos , Joystick Interface board connected to DMX network, to be added, not included).

Optional On-board Potentiometer Output Control Module.
Adjustable 4 Analog signals to DMX Converter. On-board wire terminal block for easy connection, and ribbon wire connector for remote switch input terminal of RF wireless Remote control receiver board.
4-Analog potentiometers can be user adjusted to output 0-255 DMX levels when connected to Analog converter board. Remote trigger switches can be setup for switch triggering DMX output, or connected to RF receiver board outputs for wireless remote control triggering at DMX output level 0-255 per channel. On board wire terminal and ribbon cable connections for quick and easy setup.

Optional Multifunctional On-board Potentiometer Output Control Module .
Adjust 4 Analog signals to DMX Converter. On-board wire terminal block for easy connection, and ribbon wire connector for remote switch input terminal of RF wireless Remote control receiver board. Test buttons and VDC Meter analysis check points on-board.
Analog potentiometers can be user adjusted to output 0-255 DMX levels when connected to Analog converter board. On board wire terminal and ribbon cable connections for quick and easy setup.
Ribbon Cable included between switch module and Analog DMX adapter board and wires. * ( Optional RF Transmitter, Receiver and DMX Network cables not included)

DMX - Analog Encoder Instructions

Custom interface board allows you to add the VMusic2 MP3 Player to your DMX project or display.

Requires either 3 or 4 DMX channels and the control protocol allows easy use with a standard DMX (slider) desk.

Playback, Stop, Pause and Resume functions
Select any one of up to 32 MP3 recordings
Select to control the volume either with the left and right channels ganged (3 DMX channel operation) or separately (4 DMX channel operation).

NOTE: due to the restrictions of the VMusic2 Player , the volume levels cannot be updated more than once every 0.5 seconds

Connections
DMX: 2-way terminal block- DMX connections 2 and 3
Power: 2-way terminal block- requires 9 Vdc at 0.5 A DC
VMusic2: 7-way header to match to the VMusic2 serial interface connector

Base Address Selection
The Base Address is read continuously and may be set from 1 to 510 Address 0 is treated as being 1
Uses 3-4 Consecutive DMX Channels

Indicators
Power LED
Correct power applied- Solid Green
DMX Status LED
Receiving valid DMX signal- Solid Red, No DMX signal, Flashing Red
Track Playing LED
Card playing Solid Yellow

(Audio cables, USB Drive, DMX Interface, Audio files, Speakers, Amp, Power Supply not included)

NOTE :
For best performance, ease of use and reliability its suggested to use a
" SanDisk " Media USB drive, formatted at FAT, FAT16 first time use.
MP3 files must be labeled - "001.mp3 to 032.mp3"

Note: SanDisk USB Drive Recommended

DMX - MP3 PRO Playback Controller

Custom interface board allows you to add MP3 audio to your DMX project or display. Compact DMX512 controlled MP3 player based on the 4D Systems' SOMO-II module.

Control the playback of up to 255 MP3 format tracks using either uSD or USB pen-drive media.

The SOMO-II DMX Player requires 3 DMX channels with the base address set between channels 1 and 510.

The MP3 player provides quality stereo audio at line output levels for further amplification in your existing sound system and a mono speaker output at up to 3 Watts into 4 ohms. The audio volume is fully controlled via the DMX network.

The Somo-II DMX player will accept either FAT16 or FAT32 formated uSD cards or USB flash drives.

(Audio cables, USB Drive, SD Card, DMX-XLR Interface, Audio files, Speakers, Amp, Power Supply , DMX Control Console not included)

The DMX 4 Channel Splitter is a DMX512 - 1 in 4 out splitter Board (or distributor, buffer, amplifier, booster PC board) that takes a DMX 512 output of a lighting console or any device that transmits a DMX 512 signal and offers protection with Transient Voltage Suppression on the input from devices on the daisy chain such as higher voltage dimmers, and actively splits the signal giving 4 separate functional DMX 512 outputs.

Power Requirements: 9 Vdc
PCB has a 120 ohm terminating resistor on board with a selectable jumper.
PCB can be enclosed in case with panel mounted XLR connectors, power supply jack and LED's

Note - the 4 outputs are separately driven and electronically isolated, not "Transient Voltage Suppressed" isolated from each other. Board uses a MAX3088 IC on the input w/ True Fault Indication, and uses a SN75LBC184 IC on each output offering TVS isolation on each output of the splitter.

Power Supply, XLR connectors, connecton wire, DMX source, device and enclosure not included. Optional Kit available with XLR connectors, power connector, hookup wire and power supply.

Here is an audio controller that when triggered by pressing the single on-board button or activating the attached DMX 1-Ch relay will cause the player to play back 1 to 10 MP3 quality files that are stored on a small USB Drive These MP3 files can be of any size up to the capacity of the drive You can have any number of files from 1 to 10 on the USB drive
Uses 1 DMX Channel for operation

There are 2 modes of operation provided. In Sequential Mode, the player will play the files back sequentially from file-1 to file-10 (or whatever your last file is), one file at a time each time the board is triggered. After it has played the last file, it will go back to file-1 and start over.

In Random Mode, it will pick one of the files to play back at random. It will pick a new file each time the board is triggered. The board will wait until the file has finished playing before it can be activated again.

The DMX-Hybrid MP3 Player operates on the standard DMX512 bus and requires 1 channel for operation. The address may be set between 1 and 512.
Each time the relay is activated an MP3 audio file is played in sequence or random mode.

This MP3 controller can be used in a prop, with an animatronic character, puppets, information display exhibit, at museums, zoos, as public information boards and other areas to play very high quality stereo audio sound every time it is activated. Easy to setup and use with DMX. Easy to setup and use with DMX, no complex DMX control needed. (Relay ON - Play sound, Relay OFF - No sound)

MP3 Board operates from 9-12 Vdc Power Supply and DMX relay operates from 12 Vdc Power Supply. ( Duo supplies required )

( Power supplies, speaker, remote amp, audio cables, DMX network, DMX interface, DMX control software not included )

4MB - Micro USB Drive Included with audio test files

Display: Transmitted channels (1 to 512) ...
Display: Data value on the selected channel.
5 - Pin M - XLR Connector on board end
5 - Pin F - XLR Connector on board end ..

Box Size Approx:
3-1/2"L x 2-3/4" W" x 1-5/8" H

. DMX - Pro Network Checker Instructions

Handy DMX test module for test or set-up purposes can be used to either transmit the full 512 DMX channels or in receive mode, to display the current data value on any DMX channel. Transmit data may be entered via the up / down buttons or via an optional potentiometer input.

DMX IN and Out via 5-pin XLR connectors
Power supply required to operate: 7.5 Vdc at 1 Amp via 2.1mm socket (centre positive)

On-OFF switch
Transmit / Receive mode.
Data value scroll up / down buttons
Channel value scroll up / down buttons
2x16 Red backlit supertwist LCD

( Requires 7.5 VDC 1 Amp supply, not included )

Display: Transmitted channels (1 to 512) ...
Display: Data value on the selected channel.
5 - Pin M - XLR Connector on board end
5 - Pin F - XLR Connector on board end ..

Board Size Approx:
4-1/2" L x 1-5/8" W x 1-1/8" H

DMX - Network Checker
Instructions

Use this handy module to check what's happening
on the DMX network.

Ideal for checking the output from DMX controllers and lights. Works up to the maximum DMX specification speed

Displays the number of transmitted channels (1 to 512) and the data value on the selected channel.
Selected channel may be indexed by push-buttons.
Connection to the DMX network by standard 3-pin connector.

Data displayed on back-lit 2x16 LCD.

( Requires 7.5 to 9 Vdc supply, not included )

Design your own enclosure with a DMX analyzer / tester display or add to your existing equipment or system.

The module displays any 4 of 512 channels at a time, and showing the numeric levels currently on those channels in either; decimal (0-255), hexadecimal (00-FF), percentages (0-100%), or bar graph (displays 24 channels at a time) allowing the user to scroll to any channel and monitor the levels. The 4 buttons [ +, - , 10, 100 ] will scroll thru the DMX channels for viewing, by holding down the ' - ' button and pressing 10 or 100 will subtract by 10 or 100. The Stats display shows the packet size, start code, and rate or (frequency). Also features a dual input selection in programming, if your installation needs a front and rear connection, the user can easily change from the 'A' to 'B' input simply by making a front selection change. The LCD's backlight is easily adjusted with front access software setting for easy changes in those dark control room environments. The auto dim feature allows the user to set the time and dim to value. This is useful if your using battery power.

FEATURES INCLUDE:
Bar Graph Display (Displays 24 Channels at a Time)
Decimal Display
Hexadecimal Display
Percentage Display
Statistics Display ( packet size, start code, and rate or (frequency).
Auto Dim (User Set Timer)
Dual channel Input Option (A/B)

Fully assembled printed circuit board. The PCB assembly consists of 3 boards, the 16 x 2 back lit display, detachable 4 button and contrast board, and the control board (see the side view image). The PCB includes a clear LCD cover that mounts with adhesive strips on your custom enclosure. +5 Vdc input or with the on board +5V regulator, has a +7V ~ +15 Vdc input voltage range.
PCB's Dimensions: 5.02" x 1.75" x 1.6" / LCD Dimensions: 2.8" x 1"
9 Vdc supply, connector included

This unique board was designed to allow the directional control of a Linear Actuator (IN / OUT) or DC Motor Rotation (CW / CCW) by using a DMX R/C 1-Ch Servo driver to control the DC Motor movements / positions.

LEDS indicate relay and valid DMX signal status.
Wire terminal block for DMX signal connection
Data + = 3
Data - = 2
Screen / G = 1
Uses 1- DMX Channels

Requires two power supplies (Control board, Linear Actuator)

( Linear Actuator, Power supplies Not included )

This unique board was designed to allow the directional control of a Linear Actuator (IN / OUT) or DC Motor Rotation (CW / CCW) by using a DMX 2-Ch Relay board to control the DC Motor movements / positions.

LEDS indicate relay and valid DMX signal status.
Wire terminal block for DMX signal connection
Data + = 3
Data - = 2
Screen / G = 1
Uses 1- DMX Channels

Requires two power supplies (Control board, Linear Actuator)

( Linear Actuator, Power supplies Not included )

Unique Hybrid System of boards that allows a user remote trigger control of 4 addressable DMX channels by a handheld RF Transmitter. User can set the start address of the DMX channels (1-4) and the DMX output value for each channel from 0 - 255 levels
System setup is own DMX source and can operate a single network universe, without the need for any additional DMX sources such as a control console or PC DMX software output.

Great for user manually triggering stage effects using DMX devices or any applications that require a manually operated DMX device to be operated remotely.

DMX Trigger system can also be combined with optional DMX merger board to allow user to have multiple DMX control sources (Control console, PC-DMX setup) and use Handheld DMX manual operated trigger switch with 4 independent dmx addresses and dmx control values combined to a single DMX network all working together.

DMX Base address selectable from 1 to 112
DMX Output Values adjustable from 0 - 255

DMX Hybrid System:
1- DMX Driver Output board 4 Ch.
1- 4 Ch Analog Output Board.
1- RF Receiver Board.
1- RF Handheld Transmitter 4 Ch.

Two different Handheld Transmitter options available.
Long Range Handheld (1,000 feet) or Key fob Transmitter.

Power Supplies not included. ( 12 Vdc @ 0.5 Amp )

NOTE: DMX devices and this system is not to be used for any special Pyro Effects involving flammables.

Example Setup - 1

Custom Made DMX Cable with XLR Connectors on ends
5-Pin XLR Male (M)
5-Pin XLR Female (F)
2 Feet in length

Black flexible rubber jacket.
Zinc-Alloy XLR connectors, fully (Black XLR Connectors)
Shielded Cable
Metal Housing
Cable - Tested

Standard DMX Cable with XLR Connectors on ends
5 or 3 - Pin Male (M) XLR
5 or 3 - Pin Female (F) XLR
10 Foot length

Black flexible rubber jacket.
Zinc-Alloy XLR connectors, fully
Shielded Cable
Metal Housing

5 PIN Termination XLR Adapter
Male 5-pin XLR connector on one end
Resistor Termination on other end
Metal Housing

5 PIN XLR - Male / Female connector and cable to Wire Terminal Block Adapter

Male or Female 5-pin XLR connector on end one end with Wire Terminal Block on other end .
XLR Connector Metal Housing

5-pin Female Male DMX Cable Adapter
5-pin Male DMX Cable Adapter
Number of Positions / Contacts: 5
Gender: Male / Female
Voltage Rating: 50 V
Contact Plating: Gold
Mounting Style: Panel
Termination Style: Solder
Product: XLR Connectors
Operating Temperature Range: - 30 C to + 80 C

XLR Connector Information
XLR Connector Tech Drawing

Data + = 3
Data - = 2
Screen = 1

Neutrik XLR Connectors on PCB with wire terminal block

5 Pin XLR Male - 1-5/8" L x 1-1/4" W x 1-1/8" H

5 Pin XLR Female - 1-5/8" L x 1-1/4" W x 1-1/4" H

6 Pin - 3.5mm Wire Terminal Blocks

DMX - Setup Overview

5-pin Female Male DMX - XLR Cable Adapter
5-pin Male DMX - XLR Cable Adapter

Connectors pass-through circuit
Wire Terminal Block
On-Board DMX Termination Resistor / Jumper

Neutrik XLR Connectors on PCB with wire terminal block

Board Size: - 2-1/2" L x 1-3/4" W x 1-1/4" H

5 Pin XLR Female and 5 Pin XLR Male Connectors

6 Pin - 3.5mm Wire Terminal Blocks

XLR PIN OUT Configuration
M1 - F1
M2 - F2
M3 - F3
M4 - F4
M5 - F5
MC-FC

Data + = 3
Data - = 2
Screen = 1

DMX - Setup Overview

3-pin Female Male DMX - XLR Cable Adapter
3-pin Male DMX - XLR Cable Adapter

Connectors pass-through circuit
Wire Terminal Block
On-Board DMX Termination Resistor / Jumper

Neutrik XLR Connectors on PCB with wire terminal block

Board Size: - 2-1/2" L x 1-3/4" W x 1-1/4" H

3 Pin XLR Female and 5 Pin XLR Male Connectors

3 Pin - 3.5mm Wire Terminal Blocks

XLR PIN OUT Configuration
M1 - F1
M2 - F2
M3 - F3

Data + = 3
Data - = 2
Screen = 1

DMX - Setup Overview

5-pin Male DMX - XLR Panel Connector
5-pin Female DMX - XLR Panel Connector

Neutrik - XLR Connectors
Number of Positions / Contacts: 5
Gender: Male or Female
Voltage Rating: 50 V
Contact Plating: Gold
Mounting Style: Panel
Termination Style: Solder - Wire Cup
Operating Temperature Range: - 30 C to + 80 C

XLR - 5 Pin M Data. pdf
XLR - 5 Pin F Data. pdf

A simple, easy to use, freestanding, 8 channel DMX lighting console. The console includes individual dimming controls and flash buttons, master fader, multiple chase sequence with speed and direction control and audio in/ DMX out.

Features: 8 dimming control channel, 8 scenes, Chaser, Flash, Audio input.

Features:
- Standard DMX-512 signal.
- 12 preset scenes
- Chasing Function:
a. Channel and scene chase, Fade-in / Fade-out
b. Speed control
c. Direction control
- 8 bump buttons.
- Audio control

Specifications:
- DC Power Input: 12V DC / 1A
- DMX signal output: DMX-512
- DMX signal channels: 8 channels / Sliders
- DMX signal connector: XLR 3-pin (x1), XLR 5-pin (x1) Phone Jack RJ11 (x2)
- Audio signal input Maximal external input: -10db 100mV
- Dimension: 237(W) x 170(H) x 56(D) mm
- Weight: 1.2 KG

( DMX 3/5 Pin XLR Adapter, DMX devices not included )

iPad / iPhone to DMX controller - Wireless
Use your iPad or iPhone as a remote to control DMX devices and events / shows , even control costumes with lighting effects on stage wireless.

Pro system comes ready with WiFi Wireless router, protocol converter box, power supply and DMX 5 Pin XLR connector cable.
Simple connect power, DMX devices or network to the single interface box, Install the iPad DMX application for an iPad / iPhone, set the iPad or iPhone to WiFi setup and you can now control DMX devices, networks using the iPad / iPhone to manually control, record, playback various DMX devices, networks, shows / events all wireless by remote.

Converter box supports all BPE DMX devices and most all commercial DMX lighting Fixtures. User and Setup Manual included.

Contact Blue Point Engineering for details about the Apple iPad / iPhone application that needs to be installed in the iPad/iPhone device from the Apple applications web site. ( Apple application software fee $10.00 )

( iPad, iPhone, DMX devices, fixtures, lighting , iPad / iPhone software application not included ) DMX iPad application available by download directly from the on-line Apple Computer applications store

The Ethernet to DMX converter is an affordable DMX Ethernet gateway. The device is configured as an Art-Net output node on universe 0:0 but can be easily and quickly changed using the free NMU tool software. There are no dip-switches or thumb wheels to worry about on the device. The ethernet to DMX is perfect for distributing DMX signals over Cat5 in a cost effective manner or with wireless ethernet systems

10/100 Ethernet port
Supports Artnet and ESP protocol
1 Input or 1 Output connector (not simultaneous use)
Status, Direction and Link LED's
Ethercon connector with ethernet cable
7V DC power supply
ARM 32bit Processor
Upgradeable firmware - On-line downloaded.

This interface module can control DMX hardware devices using a standard laptop, table top PC / MAC Computer, control software and USB interface cable. The module connects to any computer through the USB port. The pro is the fastest interface available with frame rates of up to 850 frames per second and is supported by all common operating systems.
A variety of DMX boards can be networked to the interface module, such as relays, light dimmers, voltage converters, servo drivers, audio boards, video switcher, etc. through the DMX cable network connecting from device to device.

Specifications:
* Micro processor enabled
* 1500 V full isolation (data & power lines to protect your computer from surges)
* 1 Input & 1 Output connector (there is only one DMX port though)
* Supports Various 3rd party Controllers/VJs/Tools
* Internal frame buffering
* Drivers for Windows, OSX and Linux
* Universe & user config EEPROM
* Refresh Rate configurable from 1 to 40Hz with a full 512 channel frame
* Break configurable from 96uS to 1.3mS
* MaB configurable from 10.6uS to 1.3mS
* Upgradeable firmware
* XLR/DMX 5-Pin connector

. Documentation / User Manual

The DMXStreamer is the most valuable DMX512 tool you will find. This product records any DMX512 stream for up to 20 hours. You simply play your DMX Lighting / Show sequence and record it with the DMXStreamer. You can then play it back when you need it, switch triggered, or automaticaly based on time of day with the inbuilt real time clock.

DMX512 streaming recorder/playback system
Full 512 channel streaming recorder
Up to 26 shows
Up to 23 hours of recording

VSA Quick Start Manual




VSA Screen Shots


..
DMX - Setup Overview
VSA DEMO Software

VSA Software
Programming Book

Blue Point Engineering is
an Authorized Distributor of
Brookshire VSA Software

Visual Show Automation (VSA) is the best visual solution for choreographing complex lighting, animatronic, and audio shows. VSA breaks away from traditional solutions and realizes that complex animatronics, robotics, and lighting systems demand a sophisticated solution.

VSA software offers a simple, visual approach. All pertinent information is displayed visually and easily adjustable. No programming experience is needed. With VSA software it is easy to see and adjust what is going on at each point in the program: What motors are moving? Where will they stop moving? What relays are active? VSA visually incorporates multiple audio files.

VSA software is great for animatronics and DJ lighting, multiple wave and MP3 files can accompany each routine, each rendered on a different sound card. A selectable audio channel is graphically displayed, significantly easing the task of lip sync and other sound dependent actions.

Requires Serial or DMX Interface boards, support hardware, computer for operation.

System Requirements PC:
* Windows ME/2000/XP/Vista with mouse (Windows 95/98 are not supported)
* Pentium 3 at 500MHz (Pentium 4 at 1.0 GHz recommended)
* 128MB RAM (512MB Recommended)
* Properly configured hardware ( e.g., ENTTEC, Veleman, DMX device or compatible hardware DMX interface modules)
* Available, properly configured serial, parallel, or USB port
* Sound card(s) and speakers (required for wave and MP3 playback)

System Requirements MAC:
* Mac Computer (Intel Version) with Windows PC Software (Boot Camp, Parallel) installed.
* Properly configured hardware (e.g., ENTTEC, Veleman DMX device or compatible hardware interface modules)
* USB to Serial port Adapter - (Keyspan)

(DMX Interface, servos, light modules, animatronics, support hardware, computer, not included).

VSA Quick Start Manual
DMX - Setup Overview
SV203 Applications -Setup
Mini-SSC II Applications - Setup

Brookshire VSA Web Site .............. VSA Software Questions

VSA Programming Books From Blue Point Engineering

DMX Interface and RF Transmitter

RF Receiver - 8 channels

Unique Hybrid System of boards allows user control of 8 addressable DMX channels to 8 remote RF receiver or multiple receivers. User can set the start address of the DMX channels (1-8) and the RF Receiver will respond to those channels.
RF receiver can be setup to activate other devices, do special effects, trigger sound boards, LED and EL Wire effects boards, just about anything needing control remotely.
The system has DMX interface board adapter that connects to any DMX network and is easily controlled by a standard dmx control software, RF adapter module, RF Transmitter and RF Receiver.

Great for triggering remote stage effects using DMX Control.
DMX Base address selectable from 1 to 505

DMX Hybrid System:
1- DMX Driver Output board 8 Ch. - Addressable from 1 to 505
1- RF Transmitter 8 Ch and Intreface Adapter Board (1,000 feet)
1- RF Receiver Board. 8 Ch.
Adapter Board
RF Adapter / Cable

The 8-Ch Receiver can be connected to a large number of add-on boards for various applications.

Power Supplies not included. ( 12 Vdc @ 0.5 Amp )

NOTE: DMX devices and this system is not to be used for any special Pyro Effects involving Flammables or Explosives.

. Documentation / User Manual

Laser Light Fixture





. Documentation / User Manual

Basic DMX System to get started using this unique hardware / software driven control method. User learns to control 8-Ch Relay board, 8-Ch servo driver boards along with applications, programming examples, and over view setup and application of other DMX expansion boards that include lighting effects, sound effects, motor control and analog device control examples, along with other support hardware / device setup overviews and applications as it relates to animatronics and Haunted entertainment engineering,.

DMX Interface, Hardware, Software, Connectors and XLR-DMX Cables, Power Supplies, Cable adapters included

DMX- 8 Channel Relay Control Board
DMX- 8 Channel Servo Control Board
2-Standard R/C Servos to get started using the Servo Driver.
Power supplies for DMX boards ( 12, 9, 5 VDC)
VSA Programing Control Software
USB to DMX Interface - ENTTEC Box to Computer USB port
XLR-DMX Networking Cables
XLR-DMX - M-F Cable Wire Terminal Adapters
DMX Handbook, reference materials, application examples
VSA User Manual, reference programming examples CD.

System connects to standard Laptop / Desktop Computer
(Computer, R/C Servos, Relay Applications not included)

With this unique DMX interface module you will be able to operate a standard Spektrum 6-Channel Radio Control Transmitter as a stand-alone R/C system.

Using DMX you can now control the R/C functions of the radio from a DMX control board. You no longer have to use manual control for your animatronic character or that R/C special effects unit you are trying to operate or are desperately trying to repeat the same manual moves using the R/C transmitter joysticks every time over and over for that 100th film retake.

This module is great for special effects people, animatronic puppeteers in stage and in film or for use with those animatronic characters built and filled with old R/C gear needing to be easily controlled.

(Spektrum R/C transmitter and receiver, power supply, DMX control setup not included)

Complete DMX Animatronic Show System designed to control animatronic characters or puppet shows. System includes DMX-Servo Driver boards, Solid State Relays, Sound System, Lighting FX Boards, DMX Control Software and interface hardware.

Through control software and hardware you will be able to design and setup a complete show, that includes adding sounds, lighting, special effects and motion control for any number of animatronic characters or Puppets. By adding additional DMX controller boards as you need, you can expand the number of characters and effects to include an entire haunted house, or full show production.

System connects to standard Laptop Computers.

(Laptop computer not included)




Documentation / User Manual


Patent Pending - 2012

DMX System utilizing the stand-alone and on board programmable Wizard / Puppet Controller Boards integrated into the DMX environment.

Unique system allows DMX to control the Wizard and/or Puppet boards under DMX control. Using a standard DMX setup each Wizard and/or Puppet board can be independently or group controlled for automated playback show sessions.
This setup make for a simple solution to complex control applications where multiple characters and event are needed. Under this system a single control software package with DMX hardware can control a large number of Wizard and/or Puppet controllers easily and provides for a smaller DMX networks and hardware requirements to create an advanced show system easily. Each Wizard and/or Puppet board is independently programmed and then linked to the DMX system.

Any Wizard or Puppet Controller board can be configured to the DMX system, Call BPE for more details and configuration options available.

System includes the following components:

Wizard Boards
Wizard-3 Control Board
Wizard-11 Control Board

DMX - ENTTEC -USB Interface , Hardware, VSA Software , Connectors and XLR-DMX Cables. Power Supplies, DMX Power Adapters for Wizard boards

System connects to standard Laptop / Desktop Computer- (Computer not included)




Documentation / User Manual

Basic DMX Animatronic System designed to control an animatronic characters or puppet show. System includes DMX- 8-Channel Servo Driver board, 1-Channel Relay Board, 1- Channel MP3 Sound System, DMX Control, VSA Software and ENTTEC DMX interface hardware.

Through control software and hardware you will be able to design and setup an animatronic character, that includes sound, and motion control for any number of animatronic characters or Puppets.

By adding additional DMX controller boards as you need, you can expand the number of characters and effects to include an entire haunted house, or full show production.

System connects to standard Laptop / Desktop Computer- (Computer not included)

Contact Blue Point Engineering for more information.




Documentation / User Manual

Advanced DMX Animatronic System designed to control an animatronic characters or puppet show. System includes DMX 8-Ch Servo Driver board, 8-Ch Relay board, DMX -MP3 Sound System, DMX Lighting FX Boards, Hybrid Wizard Control boards and DMX Control VSA Software and DMX - ENTTEC - USB Interface hardware.

Through control software and hardware you will be able to design and setup an animatronic character, that includes sound, lighting, and motion control for any number of animatronic characters or Puppets.

By adding additional DMX controller boards as you need, you can expand the number of characters and effects to include an entire haunted house, or full show production.

System connects to standard Laptop / Desktop Computer- (Computer not included)

Contact Blue Point Engineering for more information.




Documentation / User Manual

DMX System for relay control applications

DMX Interface , Hardware, Software , Connectors and XLR-DMX Cables. Power Supplies, Cable adapters

DMX- 8 Channel Relay Control Board
DMX- 1 Channel Relay Control Board
VSA Control Software
USB to DMX Interface - ENTTEC Box
XLR-DMX Cables
XLR-DMX - M-F Cable Wire Terminal Adapters
DMX- Network Terminator

System connects to standard Laptop / Desktop Computer- (Computer not included)




Documentation / User Manual

DMX System for R/C Servo control applications

DMX Interface , Hardware, Software , Connectors and XLR-DMX Cables. Power Supplies, Cable adapters

DMX- 8 Channel R/C Servo Control Board
DMX- 1 Channel R/C Servo Control Board
VSA Control Software
USB to DMX Interface - ENTTEC Box
XLR-DMX Cables
XLR-DMX - M-F Cable Wire Terminal Adapters
DMX- Network Terminator

System connects to standard Laptop / Desktop Computer- (Computer not included)


DMX controller, Software, Hardware, Interface boards to control air flow.

8 Channel and 1 Channel air valve options available.

Air quick connection, regulator, air gauge, double acting solenoid valves, hose quick hookup

Contact Blue Point Engineering to discuss your DMX control and hardware needs.

DMX -Pneumatic Setup / Overview


DMX controller with Proportional Valve Controller Interface boards to control air flow in pneumatic cylinder.

Contact Blue Point Engineering to discuss your DMX control and hardware needs.

DMX -Pneumatic Setup / Overview




Documentation / User Manual

Complete DMX controller kit with all hardware, cables, software and components to assist in the development of an animatronic setup controlled by DMX.

This kit contains all the basic components to setup a full working DMX controlled environment for use in animatronics.

Basic Animatronic Head Kit included.

Contact Blue Point Engineering for more details.

Board Size:
4-3/4" L x 2-1/4" W x 1" H
DC Motor / Linear Motor Info.

Board Size Approx:
5-3/8" L x 2-7/8" W x 1-1/4" H

DMX- 2 Ch Relay Info.

DMX Controlled Motor Control Board
Using a 2 channel DMX Relay combined with the Directional DC Motor board you can control CW, CCW of a 12V DC motor using the presence or absence of a signal at the Signal Input Terminals through the DMX 2 Channel relay board.

When the signal is present, the motor will run in one direction (motor dependent). When the signal is not present, the motor will run in the opposite direction. There are 2 limit switch inputs, one for each direction that should be hooked to N.O. dry contact closure-type switches. When a limit switch is closed, it will stop or prevent movement in the associated direction. The board can be powered from a DC source of 12 VDC, 0.5A minimum. Power to the board can be applied via the 2.1mm barrel-type connector or the adjacent 2-position terminal block and is indicated by a green LED. Power for the motor should be 12VDC at a current applicable for the motor attached. A green LED next to the Motor Power connector indicates that motor power is present.

DMX Motor Controller Relay
A duo channel DMX relay for switching the Motor Control Board On and OFF. The DMX-switch operates on the standard DMX512 bus and requires 2 channel for operation. The address may be set between 1 and 512. Operating the DMX relay will control the DC motor rotation or the action of a Linear Motor Actuator.
12 VDC, 0.5A minimum Power Supply required for 2-Ch DMX relay board.


Power supplies, DC motor, DMX control Interface not included.




Documentation / User Manual

DMX LED Light controller, LED Light Strip, LED's, Hardware

Using this kit you can control a series of individual LED's and a set of LED strip Lights.

Contact Blue Point Engineering to discuss your DMX control and hardware needs.




Documentation / User Manual

DMX mini Pump controller, Hardware.

This unique kit provides a dmx controlled mini fluid pump setup.

Contact Blue Point Engineering to discuss your DMX control and hardware needs.


DMX controller, Pneumatic Hardware, Interface boards to control air flow.

8 Channel and 1 Channel air valve options available.

Air quick connection, regulator, air gauge, double acting solenoid valves, hose quick hookup connectors, flow control, pneumatic tubing

1 - Double acting experimental - air cylinder
1 - Single acting experimental - air cylinder

Contact Blue Point Engineering to discuss your DMX control and hardware needs.

DMX -Pneumatic Setup / Overview
