Small board will take 6 - 12 Volts dc and output a clean 5.0 Volts dc @ 2 Amp power.

On-board filter circuit to provide clean power.
Wire Terminals for quick hook-up.
LED Power Indicator, ON - OFF Switch.
Power Jack Connector or Terminal Block connectors.

Input Power supply required 6-12 Vdc @ 2 Amp

Output Power 4.9-5.0 Volts dc @ 2 Amp.

Board Size:
2-1/2" L x 1-1/2" W x 5/8" H

Small board will take 6 - 12 Volts dc and output a clean 4.9-5.0 Volts DC at 1.0 Amp power to a USB Connector.

On-board filter circuit provides clean power.
LED Power Indicator, ON - OFF Switch.
Power Jack Connector for quick hook-up.

Input Power supply required 6 -12 Vdc @ 1 Amp
Output Power 4.9-5.0 Volts dc @ 1 Amp.

Power Supply, USB Power Cable not included.

Kits allow you to choose a single Voltage Output power level that you need.

Power Regulators Kits
(Only one regulator is included with kit, select the output voltage needed)
Output Kits Available:

Kit 1, a = +24 Vdc - 1 Amp or 2 Amp available
Kit 2 = +12 Vdc - 1 Amp
Kit 3, a = +9 Vdc - 1 Amp or 2 Amp available
Kit 4 , a= +5 Vdc - 1 Amp or 2 Amp available
Kit 5 = +3 Vdc - 1 Amp

Board has:
On-board filter circuit to provide clean power.
Wire Terminals for quick hook-up.
LED Power Indicator, ON - OFF Switch.
Power Jack Connector or Terminal Block connectors.

NOTE: Power regulator boards require at least 2 volts greater input voltage than the output voltage needed. Regulator boards can not increase the voltage output from a lower voltage input

NOTE:
These Kits require soldering and electronic knowledge to complete. User installs all electronic parts.

Kits have no warranty and can not be returned, as they are use assembled kits.

Note: Some regulators may not be available, please contact BPE for information

This unique power module can be used to convert AC voltages from 9-24 AC input to 9-24 VDC output at 2 Amp.

There are three different DC voltage outputs options available:
5 Vdc @ 2 Amp
9 Vdc @ 2 Amp
12 Vdc @ 2 Amp

Note:

AC supply voltge input must be at last 1 Volt greater then DC Voltage output

9V Battery holder with power control

Wire Terminal block for quick hook-up of power plugs
LED Power ON Indicator Circuit
ON - OFF Power Switch.
Secure metal battery holder bracket

Power Plugs not included.
9V Battery not included
Rated for 9Vdc @ 800 mAmp Load

Optional Power Jack and BEC Power jack available

Male Power Jack Connector with Screw Terminal Block
Low-Voltage, Stranded Wires are recommended.
Simply secure wires into the screw type terminals.

DC Plug Technical Specification
Outer Diameter: 5.5mm
Inner Diameter: 2.1mm

Female Power Jack Plug Connector with Screw Terminal Block
Low-Voltage, Stranded Wires are recommended.
Simply secure wires into the screw type terminals.

DC Plug Technical Specification
Outer Diameter: 5.5mm
Inner Diameter: 2.1mm

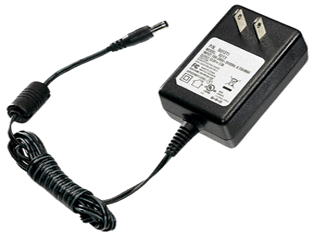

Fully regulated switching power supply with wall socket plug and 2.1mm power jack. Unit has filter circuit to provide clean output power and regulator to maintain 12Vdc output with current load precision regulation. 12 VDC 2A Switching Power Supply AC Adapter. Inline filter, which greatly reduces AC line noise and interference.

Input Power : 110 VAC - Wall Socket
Output Power 12 Volts dc @ 2 Amp.
Power Jack: Center is Positive (+)

Power Cord to power jack: - 6' Long
Power Cord noise suppressor coil
Power Jack : - 2.1mm x 5.5mm x 9mm Long,
Center Positive (+), outside negative (-).
Approved/listed by major safety agencies UL and CE

AC WARNING
AC Voltage Warning Note

NOTE
Product may vary in size, shape or cord configurations
Contact Blue Point Engineering for details on what is currently available in stock.

Fully regulated, power supply with wall socket plug and 2.1mm power jack. Unit has filter circuit to provide clean output power and regulator to maintain 9Vdc output with current load precision regulation.

Input Power : 110 VAC - Wall Socket
Output Power 9.0 Volts dc @ 2 Amp.
Power Jack: Center is Positive (+)

Power Cord to all socket: - 6' long : ( See Note )
Power Cord to power jack: - 7' Long : ( See Note )
Power Jack : - 2.1mm x 5mm long,
Center Positive (+), outside negative (-).

Over voltage protection
Short circuit protection
VDC Output Devices

Application:

Wizard Controller Board Line
Sound Board Line
Sensor Control Line

NOTE
Product may vary in size, shape or cord configurations
Contact Blue Point Engineering for details on what is currently available in stock.


AC WARNING
AC Voltage Warning Note

Fully regulated, power supply with wall socket plug and 2.1mm power jack. Unit has filter circuit to provide clean output power and regulator to maintain 6Vdc output with current load precision regulation.

Input Power : 110 VAC - Wall Socket
Output Power 6.0 Volts dc @ 3.0 Amp.
Power Jack: Center is Positive (+)

Power Cord to all socket: - 6' long : ( See Note )
Power Cord to power jack: - 7' Long : ( See Note )
Power Jack : - 2.1mm x 5mm long,
Center Positive (+), outside negative (-).

Over voltage protection
Short circuit protection
VDC Output Devices

Application:

Wizard Controller Board Line

NOTE
Product may vary in size, shape or cord configurations
Contact Blue Point Engineering for details on what is currently available in stock.


AC WARNING
AC Voltage Warning Note

Fully regulated, power supply with wall socket plug and 2.1mm power jack. Unit has filter circuit to provide clean output power and regulator to maintain 5Vdc output with current load precision regulation.

Input Power : 110 VAC - Wall Socket
Output Power 5.0 Volts dc @ 4 Amp.
Power Jack: Center is Positive (+)

Power Cord to all socket: - 6' long : ( See Note )
Power Cord to power jack: - 7' Long : ( See Note )
Power Jack : - 2.1mm x 5mm long,
Center Positive (+), outside negative (-).

Over voltage protection
Short circuit protection
VDC Output Devices

Application:

Specific Wizard / Puppet / Sound Boards

NOTE
Product may vary in size, shape or cord configurations
Contact Blue Point Engineering for details on what is currently available in stock.


AC WARNING
AC Voltage Warning Note

Power Splitter - Y Adaptor

Now you can power 2 devices with 1 power source.
Quick connect feature makes setup simple.
Y adapter connectors to match NiMH Battery.
2.1 mm power jack connectors on opposite ends.

Charger connects directly to NiMH Battery Pack.
Charges NiMH Battery Pack fully in 2 - 3 hours.

FEATURES:
-Fast charges 8-15 (9.6-18V) cell NiMH battery packs
-Microprocessor controled negative delta peak detection circuit
-Thermal sensor while charging.
-115 vac wall power plugin
-Automatically senses pack voltage
-Red/green LED charge indicator lights
-Selectable Charge rate .90amps or 1.8amps
-Automatic trickle charge mode: 50ma
-Typical charge time for a 5000mah pack 2.5 hours
-Connector: Power Plug Female 5.5 x 2.1 mm Center Positive

Female POWER PLUG 2.1mm x 5.5mm
Outer Diameter: 5.5mm
Inner Diameter: 2.1mm
Center Pin - Positive

9 v 5000mah 8 cell NiMH C Pack
8 x C - NiMH Flat Top Cell

Capacity:5000 mADischarge Rate:10 AmpsHeight: 2.02"
Width: 2.02"
Length: 4.02"
Weight: 23.00 ounces
2.1 x 5.5mm Center Pin - Positive M Power Jack

Connects directly to NiMH Battery Charger or Controller Boards with 2.1 x 5.5 mm F power plug

12v 5000mah 10 cell NiMH C Pack
10 x C - NiMH Flat Top Cell
Capacity:5000 mADischarge Rate:20 Amps

Height: 1.03"
Width: 2.03"
Length: 5.03"
Weight: 32.00 ounces
2.1 x 5.5mm Center Pin - Positive M Power Jack

Connects directly to NiMH Battery Charger or Controller Boards with 2.1 x 5.5 mm F power plug

A power cord style relay module that switches 120vac (up to 15 amps) with a simple dc control input low voltage of 3vdc @ 3ma to 12vdc @ 30ma

· No exposed 120vac voltages and no dangerous 120vac wiring required. Can be installed by non-technical users. Safe for users applications.
· Plugs into standard 120vac 3-prong household outlets, power strips, and extension cords. Easily inserts between power source and corded electrical devices.
· Eliminates the exposure of hazardous AC voltages
· No special 120vac wiring when deploying new products and custom solutions. Eliminate the need for electrician fees or electrical wiring permits.
· Switches up to 15 amps with a 3-12vdc (3-30ma) control signal.
· Connects directly to any microcontroller / RC Interface Controller circuit. Ideal for use with battery powered controllers.
· Two-wire control signal connects to screw terminal block (14-30 AWG).
· 5300Vrms isolation between mains circuit and signal connection.
· LED indicator shows status of control signal.
· No phantom power when de-energized.
· Units are "stackable" and easily mount with two screws.
· Connect input plug to wall outlet or using multiple units, to a power strip.
· Connect output receptacle to a single powered device or to a power strip to control multiple loads.
· Output devices may be 3-prong or 2-prong appliances or lights.
· Indoor use only.

AC input: NEMA 5-15P Plug, standard 120vac with ground. (USA Version)
AC output: NEMA 5-15R Receptacle, standard 120vac with ground. Switching capacity: 15amps @ 120vac Life expectancy: 100,000 operations @ 15amps, 125vac, resistive DC input: 3-12vdc 3-30ma, terminal block accepts #14-30 AWG wire.
Operate times: 15 ms max actuate, 10 ms max release. DC to ac circuit isolation: 5300Vrms Indicator: LED indicates when dc side is energized. Protection: AC side protected with 150vac MOV. DC side is transient free.
Mounting: Two #6 screws or free standing

 AC Power Cord "Y " with Power outlets
Suggested for Each SS Power Module

AC Power IN Cord - 6 Foot
Required for Each SS Power Module

AC Extension Power Cord - 15 Foot

Detachable AC Power cords for us with Solid State AC Control Modules.
Cords can be connected together to extend AC Power to needed location.

AC power cords rated at 10 Amps

Cord ends have Special Plugs and connectors for AC power handling.

Click on Image for a Closeup View

Board Size:
1-7/8" L x 1" W x 1-5/8" H

Small 2 - axis joystick module with spring center return.
Potentiometers are 10K Ohm.
Compact Size ( 20mm x 21mm x13mm)
Long Life 1 Million Cycle
Sturdy metal case with convenient PCB mounting tabs.
Potentiometers - 3 tab PCB mount
connection. ( + / - and W terminals )
PCB Mounting Terminals on Potentiometers
Maximum Operating Voltage = 5 VDC
Angle of Rotation - 60 Degrees
Rotational Torque - 153 ±102 gf-cm
Resistance Taper - Linear ±5%



Micro Joystick Module with Printer Circuit Board
Mini Wire Terminal Block - 3.5 mm

Small 2 - axis joystick module with spring center return and push down button switch

Potentiometers are 10K Ohm.
Compact Size ( 20mm x 21mm x13mm)
Long Life 1 Million Cycle
Sturdy metal case with convenient PCB mounting tabs.
Potentiometers - 3 tab PCB mount
connection. ( + / - and W terminals )
PCB Mounting Terminals on Potentiometers
Maximum Operating Voltage = 5 VDC
Angle of Rotation - 60 Degrees
Rotational Torque - 153 ±102 gf-cm
Resistance Taper - Linear ±5%
Switch - 0.5 Amp

Micro Joystick / Switch Module with Printer Circuit Board
Mini Wire Terminal Block - 3.5mm

Small 2 - axis joystick module with spring center return and finger cap. Easy to move with single finger. Cap top has soft rubber material to keep finger on joystick. Push down button switch also part of joystick

Potentiometers are 10K Ohm.
Potentiometers - 3 tab PCB mount
Switch- 4 tab PCB mount
connection. ( + / - and W terminals )
PCB Mounting Terminals on Potentiometers
Maximum Operating Voltage = 5 VDC
Angle of Rotation - 60 Degrees
Rotational Torque - 153 ±102 gf-cm
Resistance Taper - Linear ±5%

Micro Joystick / Switch Module with Printer Circuit Board
Mini Wire Terminal Block - 3.5mm

Unique 2 channel Joystick will control 2 mid size DC motors attached directly to the wire terminal blocks in CW (Clockwise) and CCW (counterclockwise) motor ration control as the joystick is moved.
Two axis joystick (Switch) ( X-Y )

Easy Setup Connections: Attach motors, a power supply 5-12 Vdc to the wire terminal blocks and a remote On and Off power switch and your ready to control the two motor rotations from the joystick, Motor rotation control logic built on-board
5 Amp at 5-12 VDC power output rated
Motor Control Logic on-board (CW/ CCW Control)
Bi-Color Motor Rotation Status LED's
Power On LED

Joystick Size: - Data on Joystick
Approx: 2-1/2"H x 1-3/4" W x 1-3/4" W

Joystick PCB board Size:
2-5/8" L x 2" W x 2-3/4" H (Joystick Included)

Joystick module can be mounted in user optional enclosures

(DC Motor, Power Supply, On /Off Switch Not Included)

Unique 2 channel Joystick will control 2 Linear Actuator motors attached directly to the wire terminal blocks with each linear OUT and IN lead screw motor movement control as the joystick is moved.
Two axis joystick (Switch) ( X-Y )
Motor Control Logic on-board (OUT / IN Control)
5 Amp at 5-12 VDC power output rated
Bi-Color Linear Actuator Direction Status LED's
Power ON LED

Easy Setup Connections: Attach linear actuator motor, a power supply 5-12 Vdc to the wire terminal blocks and a remote On and Off power switch and your ready to control the two motor in and out movements from the joystick. Linear Actuator motion control logic built on-board

Joystick Size: - Data on Joystick
Approx: 2-1/2"H x 1-3/4" W x 1-3/4" W

Joystick PCB board Size:
4-5/8" L x 3" W x 2-3/4" H (Joystick Included)

Joystick module can be mounted in user optional enclosures

(Linear Actuator, Power Supply, On /Off Switch Not Included)

Low Profile "Switch Stick" Joystick
Two axis joystick (Switch) ( X-Y )

1.73" handle height
Spring return to center
Tapered knob
Four 5 amp / 250VAC SPST directional switches
(N.O - N.C - Com contacts)
Capable of 4-way or 8-way directional switching
Four point mounting with hardware
Protective rubber boot
12 Position Mini Wire Terminal Block - 3.5mm
Each of the 4 Channels have Common, NO, NC switch configuration wire terminal blocks for quick setup
Joystick module can be mounted in user optional enclosure box

Joystick Size: - Data on Joystick

Approx: 2-1/2"H x 1-3/4" W x 1-3/4" W

BEC Connector on one end
The other end of the cable is not connected to any connector and has solder tipped color coded wires for hooking up to custom connectors or directly to a project.
Wire lead -5-1/2" Long - Red / Black Wire

Servo Jumper - Male-Male connector ends.

22 AWG Servo Lead - Universal Connectors - 6" jumper

22 AWG Servo Lead - Universal Connectors -12" jumper

SERVO WIRE
This wire has connected black, red and white conductors.
Extremely flexible high strand-count wire.
Specs:
Gauge: 24AWG, 60 strand
Conductors: 3
Colors: Black, Red, White

POWER WIRE
This wire has paired black and red conductors.
Extremely flexible high strand-count wire.
Specs:
Gauge: 24AWG, 60 strand
Conductors: 2
Colors: Red, Black

Power Cable and Jacks.
Power connection for Wizard / Puppet and other BPE Products

2.1mm (ID) x 5.5mm (OD) x 12mm
( Center Positive + ) ( Outside Can Negative - )

Power Cable - Male End - 10" cable with M Power
Plug - Black/Red wire 2 Cord. Stripped and tinned wire ends
26 AWG.
(Center power positive)



Power Cable - Female End - 10" cable with F Power
Plug - Black/Red wire 2 Cord. Stripped and tinned wire ends
26 AWG.
(Center power positive)






Power Cable - Male / Male Ends - 3 Foot cable with M Power
Plug on both ends - color wire Red / Black Line zip cord
16 AWG.
( Center Positive )
Wire cord can be cut in half to make two separate M cords if needed

6-Ch Distribution (D1 x 3 or 1 x 6)

10-Ch Distribution (D2 x 5 or 1 x 10)

These modules are designed to assist in the quick connection of power supply voltage to various distribution points.

Each module has a quick connect power jack, with ON and OFF power switch and LED power status indicators.

Board is divided into two rows with separate power distribution (Different Power Supplies can be used) or can be set to operate as a single board distributing one power source.

A set of power jacks make hook-up to device easy to do.

(Power Jacks are 2.1mm x 5.5mm Center Positive + )

Boards are labeled with input and output channels for quick identification and set-up.

10 Ch board cab be set to 2x5 or 10 single VDC Power Distribution.

Modules are rated for 5 Amps loads at 12 Vdc.

Power supplies, cables not included.

The Solid State Relay Module can be used to Switch On / Off AC device up to 10 Amps from a simple 0 -10 Vdc control signal.

0-10 Vdc control signal can be sent from Programmable Controller, Manual Adjustable Voltage supply, Servo to Analog converter board and any Wizard, or Puppet Controller Boards servo port to operate the SS Relay On / Off Module.

Module has LED Status indicator,
AC Power Plugs for quick connection.
0-2 Volts = Relay Off
3-10 Volts = Relay On ( Full )

AC Voltage loads = 10Amp

Wizard, Puppet boards, Programmable Voltage controller, Manual controller, AC power cords - not included.

NOTE:
SS Relay requires Heatsink for large AC loads - not included
Each Module requires AC Power IN cord and Output cord for operation

Solid State Relay with Power Cord Connections

This compact SS Relay Module can be used to control ON and OFF any AC device up to 5 Amps from a small 5 -Vdc control signal.

5 -Vdc control signal can be sent from any of the Wizard, Puppet controller boards Digital Output port to operate the SS Relay module board.

When connected to the Wizard, Puppet controllers, user created programs can be generated to operate the SS Relay in various automated applications.

Module has On / Off LED Status indicator,
Wire Terminal Blocks for quick connection.

Wizard, Puppet controllers, AC power cord not included.

WARNING:
This is a potentially dangerous board
as it connects directly to live AC voltage.
Only those with a knowledge of how
AC Voltage works should use it.

The SS Dimmer Module can be used to dim up and down any AC device ( lighting ) up to 20 Amps from a simple 0 -10 Vdc control signal.

0-10 Vdc control signal can be sent from Servo to Analog converter board and any Wizard, Puppet Controller Boards servo port to operate the SS Dimmer Module.

Module has LED Status indicator,
Wire Terminal Blocks for quick connection.
0 Volts = Dimmer Off
5 Volts = Dimmer 50 % On ( Half )
10 Volts = Dimmer 100 % On ( Full )
Voltage between 0 -10 variable power out.

Analog converter board Wizard, Puppet boards - not included.
Dimmer Module requires Heatsink for large AC Dimming loads - not included

WARNING:
This is a potentially dangerous board
as it connects directly to live AC voltage.
Only those with a knowledge of how
AC Voltage works should use it.

This heavy duty SS Relay Module can be used to control ON and OFF any 110 VAC device up to 10 Amps from a small +5 Vdc control signal.

+5 Vdc control signal can be sent from any of the Wizard, Puppet controller boards Digital Output port to operate the SS Relay module board, or any device that generates a +5 Vdc signal can be used.

Module has On / Off LED Status indicator,
Wire Terminal Blocks (10 gauge wire size) for quick connection of extension wire

Wizard, Puppet controllers, AC power cord not included.

...........
WARNING:
This is a potentially dangerous board
as it connects directly to live AC voltage.
Only those with a knowledge of how
AC Voltage works should use it.

The SS Dimmer Module can be used to dim up and down any AC device ( lighting ) up to 10 Amps from a simple 0 -10 Vdc control signal.

0-10 Vdc control signal can be sent from Programmable Controller, Manual Adjustable Voltage supply, Servo to Analog converter board and any Wizard, or Puppet Controller Boards servo port to operate the SS Dimmer Module.

Module has LED Status indicator,
AC Power Plugs for quick connection.
0 Volts = Dimmer Off
5 Volts = Dimmer 50 % On ( Half )
10 Volts = Dimmer 100 % On ( Full )
Voltage between 0 -10 variable power out.

Analog converter board Wizard, Puppet boards, Programmable Voltage controller, Manual controller, AC power cords - not included.

NOTE:
Dimmer Module requires Heatsink for large AC Dimming loads - not included
Each Module requires AC Power IN cord and Output cord for operation

Solid State Dimmer with Power Cord Connections

This special Solid State Relay Module can be used to Switch On and Off AC powered device up to 8 Amps from a remote relay, or manual operated switch . (Low voltage Remote Switching)
On Board Connection from remote switch / relay, power and relay status LED's.

Remote Switch - 5Vdc pass
AC Power Relay - 8 Amps

NOTE:
Remote Relay or Manual Switch required for Control of AC Power Switch.

AC Power Cords, remote relay, switch, wires not included.

This special Solid State Relay Module can be used to Switch On and Off AC powered device up to 8 Amps from any standard Servo Controller.

On Board Connection from servo, power and relay status LED's.

NOTE:
Servo Driver board required to operate Servo Controlled Solid State AC Power Switch

AC Power Cords, Servo Driver Board, Jumper Wire not included.

This unique power module can be used to convert wall power 100-150 Volts AC 50/60Hz to DC Voltage directly for powering DC projects.

There are 3 different DC voltage outputs options available:
5 Vdc @ 600 mA
9 Vdc @ 330 mA
12 Vdc @ 280 mA

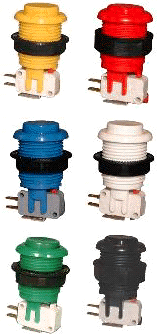

Large Button Switch

Big Push Button Momentary Action Game Switches.
These big,rugged switch assemblies were originally designed for video games and computer games, where the action is hard and frequent.

Switch Action: Momentary
SPDT, Both Normally Open and Normally Closed Contacts.
Terminals: 0.187 Inch Tab Quick Connect
Current Rating: 10 Amps @ 125/250V AC
Contact Material: Silver.
Terminal Material: Silver plated brass
Initial Contact Resistance: 15 Meg OHM (Max)
Dielectric Strength: 1000V AC for 1 Minute
500 V DC 1000 Meg OHM (Max)
Activation Pressure: 75 Grams
Mounting Hole: 1.125 Inch
Button Size: 7/8"
Switch Button Material: ABS Plastic

Switch: White / Gray Color:
Switch Operation:
PT: Max1.2 mm
OT Min: 1.27 mm
MS Max: 25 mm
OP: 578 +/- 02 mm

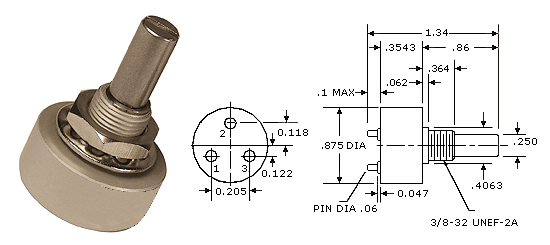

10K Ohm slide and rotary potentiometer with wire terminal blocks.

Slide Potentiometer Board Size:
3-1/8" L x 1" W x 1-1/2" H

Rotary Potentiometer Board Size:
1-1/2" L x 1" W x 1-1/4" H

Remote Lever Switches have mini wire terminal blocks for Normal, Closed and COMmon connections.

Switches are rated a 1 Amp

Lever Switch - 1
Board Size: 1" L x 5/8" W x 1/2" H

Lever Switch - 2
Board Size: 1-5/8" L x 7/8" W x 1/2" H

3 - Position Switch ....
On-Off-On Momentary
Click on image for a close up view

2 - Position Switch ...
Off-On Momentary
Click on image for a close up view

Unique Switches used to control the Wizard-12 Control Board by manual control

3 - Position Switch - Servo travel B- A - C positions
Switch configured as On - Off - On
Servo movement Left, Center, Right

2 - Position Switch - Servo travel A-B / B- A positions
Switch configured as On - Off
Servo movement Left, Center

Switches come in 2 combination types
Switch mounted on PCB board
Switch remote - not mounted on PCB board.

PCB boards have wire terminal blocks for quick easy connections with on board resistor for correct servo control

Rotary Switch has mini wire terminal blocks for wire connections.
Common and 1-12 wire terminal block connections

Switch is rated a 0.5 Amp

Board Size: 2-1/2" L x 1-3/4" W x 1-3/4" H

Inline momentary pushbutton switch mounted in a XLR type metal housing
Switch Rated: 125VAC @ 3 Amp

(Connection wire not included, Soldering / Assembly required)

Micro Switch - ON / OFF / ON

Switch rated at 1 Amp

Flex Switch is tough, durable and easy to use general purpose, 3/4" wide ribbon switch for activation by hand, foot, or mechanical device.

Mounting is by means of double-sided tape or mounting channel.

Specifications
Activation Force: 24 oz (7 N)
Exterior Covering : PVC
Color : Yellow
Lead Wire: #18 AWG, 18 in (460 mm) long
Dimensions : 3/4" wide, 3/16" high (19.1 mm x 4.8 mm )
Dimensions : 12" long
Recommended Voltage & Current: 24 Vac or Vdc at 1.0 amps max.
Sealed sleeve ends. Dirt, dust and water cannot penetrate the assembly.

Unique board allow a standard 9 Volt Battery snap to be connected to a wall power adapter.

Board has:
9 Volt battery Snap Connector Jack
9 Vdc Power Jack Connector
LED ON Status light circuit
Power On and Off Switch
Rated for 9Vdc @ 800 mAmp Load

( 9V battery Snap / power supply not included )

Power Adapter to connect 4 mini cameras to a single 12 vdc power supply

Wire Terminal block for quick hook-up of power plugs
LED Power ON Indicator Circuit
ON - OFF Power Switch.
Rated for 12Vdc @ 2 Amp Load
On Board power filter regulation circuit


Power Supply not included
Power cables not included.

Optional Power connection cables available

Board has two power output connectors from single power input source.
Power On / Off Switch
LED Power On Status LED.

Rated for 1-12Vdc @ 3.5 Amp Load

( power supply not included )

Board has four power output connectors from single power input source.
Power On / Off Switch
LED Power On Status LED.

Rated for 1-12Vdc @ 3.5 Amp Load

( power supply not included )

Power Board will output 9, 9, 5 Volts dc @ 2 Amp power.

On-board filter circuit to provide clean power.
Wire Terminals for quick hook-up.
LED Power Indicator, ON - OFF Switch.
Power Jack Connector or Terminal Block connectors.

Input Power supply required 24 Vdc @3 Amp

Output Power Ch 1 - 8.9- 9.0 Volts dc @2 Amp.
Output Power Ch 2 - 8.9- 9.0 Volts dc @2 Amp.
Output Power Ch 3 - 5.0 Volts dc @2 Amp.

( 24 vdc power supply not included )

Small board will take 5 - 6 Volts dc and provide power to large servo along with control signal to operate servo from attached servo controller board.

Control signal, power, ground logic designed on board.
3 Pin header for large servo, control board. Jumper plug makes connecting adapter quick to control board>
Power jack, LED status on board.

(servo, power supply, servo controller not included)

Pre-programmed PIC power relay will activate solid state relays after time period expires and pass connected voltage through relays when time delay is over
Board can be ordered with a user specified time delay.
Contact BPE for details
Solid state relays can handle combined 10.5 Amp load.
Time delay count down starts as soon as board is powered on.

Board requires 7-24 Vdc supply

Power supply not included

Unique Switches, Potentiometers, Devices used to control the Wizard-12 Control Board

4 - Micro Lever Switches on PCB.
3 wire block per switch

3 - Position Lever Switches
ON / OFF / ON - Momentary

Switches rated at 1 Amp each

Small 2 / 4 - axis joystick module with spring center return.
Potentiometers are 10K Ohm.
Compact Size ( 20mm x 21mm x13mm)
Long Life 1 Million Cycle
Sturdy metal case with convenient PCB mounting tabs.
Potentiometers - 3 tab PCB mount
connection. ( + / - and W terminals )
PCB Mounting Terminals on Potentiometers
Maximum Operating Voltage = 5 VDC
Angle of Rotation - 60 Degrees
Rotational Torque - 153 ±102 gf-cm
Resistance Taper - Linear ±5%

Micro Joystick Module on Printer Circuit Board
Mini Wire Terminal Blocks

Low Profile "Switch Stick" Joystick

Two axis joystick (Switch) ( X-Y )

1.73" handle height
Spring return to center
Tapered knob
Four 5 amp / 250VAC SPST directional switches
(N.O - N.C - Com contacts)
Capable of 4-way or 8-way directional switching
Four point mounting with hardware
Protective rubber boot

Application Example

Click on image for a closeup of slip ring

Slip Ring Size

This unique rotating slip ring can be used in any electro-mechanical system that requires unrestrained, continuous rotation while transmitting power and / or data from a stationary structure to a rotating structure. The slip ring is also known as a rotary electrical interface, commutator, collector, swivel or an electrical rotary joint.

SPECIFICATIONS:
- 12 Wire Sets
- Voltage(max) 240 VAC/DC
- Current(max) 2 amps / per circuit
- Wires Size AWG28
- Flexible, color-coded, Teflon®insulated lead wires
- 200mm standard wire lead lengths (Aprox 10")
- Speeds up to 300 rpm continuous
- Gold-on-gold contacts
- Transfers analog and digital signals
- Compatible with data bus protocols
- Precision ball bearings
- Dielectric Strength 500 VAC @50Hz, between each circuit
- Insulation Resistance 1000 megohms @ 500 VDC
- Electric Noise <10 mOhm
- The operational life of the unit depends upon temperature, rotation ..speed and environment, Operational life >80,000,000 runs.

This unique board is a digital rheostat or potentiometer using the Dallas Semiconductor DS1869-X series of digital potentiometers. Like a manual turned potentiometer, this potentiometer board is controller by using digital signals pulses instead. This digital potentiometer provides 64 possible uniform tap points over the entire resistive range of the potentiometer output.

The digital potentiometer board is controlled by either remote manual switch inputs, on board push button switches or remote relay closure.
Quick connection wire terminal and power jack make setup easy
Potentiometer output connection is standard Low Wiper, High contacts through the digital potentiometer
Remote Switch, Relay pass through power (5VDC) is provided by the on board circuit directly for use with these remote devices.

NOTE:
The maximum wiper current allowed through the digital potentiometer semiconductor IC is 1 milliamp.

Board requires 9 VDC @ 1 Amp power (not included)

Wiper position is maintained in the absence of power through the use of a EEPROM memory cell array.

Resistive ranges available
10 k ohm
50 k ohm
100 k ohm

Switches, connection wires, remote relay, power supply not included

Incorrect use or mishandling of these AC Voltage Powered Products / Devices or Modules could result in serious personal injury or death, possible physical damage of the product, faulty operation and other potential serious dangerous hazards if used improperly. If you are not sure how to correctly wire or use these AC powered products, then STOP and seek professional qualified assistance immediately.

DO NOT ATTEMPT TO USE THESE DEVICES IF YOU DO NOT UNDERSTAND AC VOLTAGE POWERED OPERATIONS - STOP ALL ACTIVITY IMMEDIATELY WITH THESE DEVICES !!

Use these AC Voltage products at your own risk.

Warning - There is live AC on these board. Therefore, it is imperative that the boards be mounted in a plastic, non-conductive enclosure at all times.

Warning - do not touch electrically charged parts such as the circuit board, power terminals, power cord wire ends or open electrical sockets. Doing so may cause electric shock resulting in serious personal injury or even death.

Warning - make sure the product has been correctly wired before turning the power ON and check to see that all wires are firmly connected to the terminals / sockets. Failure to do so could cause electric shock, fire hazards or result in physical damage of the product and serious personal injury or death.

Warning - before wiring, removing or mounting the product, be sure to turn the power OFF. Failure to do so may cause serious personal injury, physical damage of the product. Do not disassemble the product. Doing so could cause electric shock or faulty operation.

Miscellaneous Information:
Remember, these boards have live AC current on them. Contact with any component on the board while it is plugged in could be FATAL! Do not use these boards unless it is enclosed in a non-conductive plastic enclosure. And do not use this anywhere it could get wet or damp. There is a 5A fuse on some of the board. If you blow this fuse, only replace it with a 5A fuse and check the wattage of the lamp you are controlling to prevent future problems Unplug everything first before handling the board or changing fuses.

Use these products within the operating ranges recommended in the specification (voltage, amp loads, directions) Failure to do so might cause faulty operations, fire or other hazards.

Use these AC Voltage products at your own risk.

By purchasing any BPE product, the buyer signifies agreement to all these terms of sale, safety warning, cautionary notices and will not hold Blue Point Engineering, LLC responsible for any liability for these AC Voltage products that were used at your own risk.

By law, in no event shall Blue Point Engineering LLC be liable for any claim for incidental, consequential damages or any injuries sustained due to the use of or improper use of these AC voltage products These products should NOT be used for any applications that could cause injury, dangerous / hazardous situations or consequential damages or other hazards.

Disclaimer:
These boards are designed for educational use only. In no circumstances should these circuit boards be used in critical situations where failure could mean injury or property damage.
